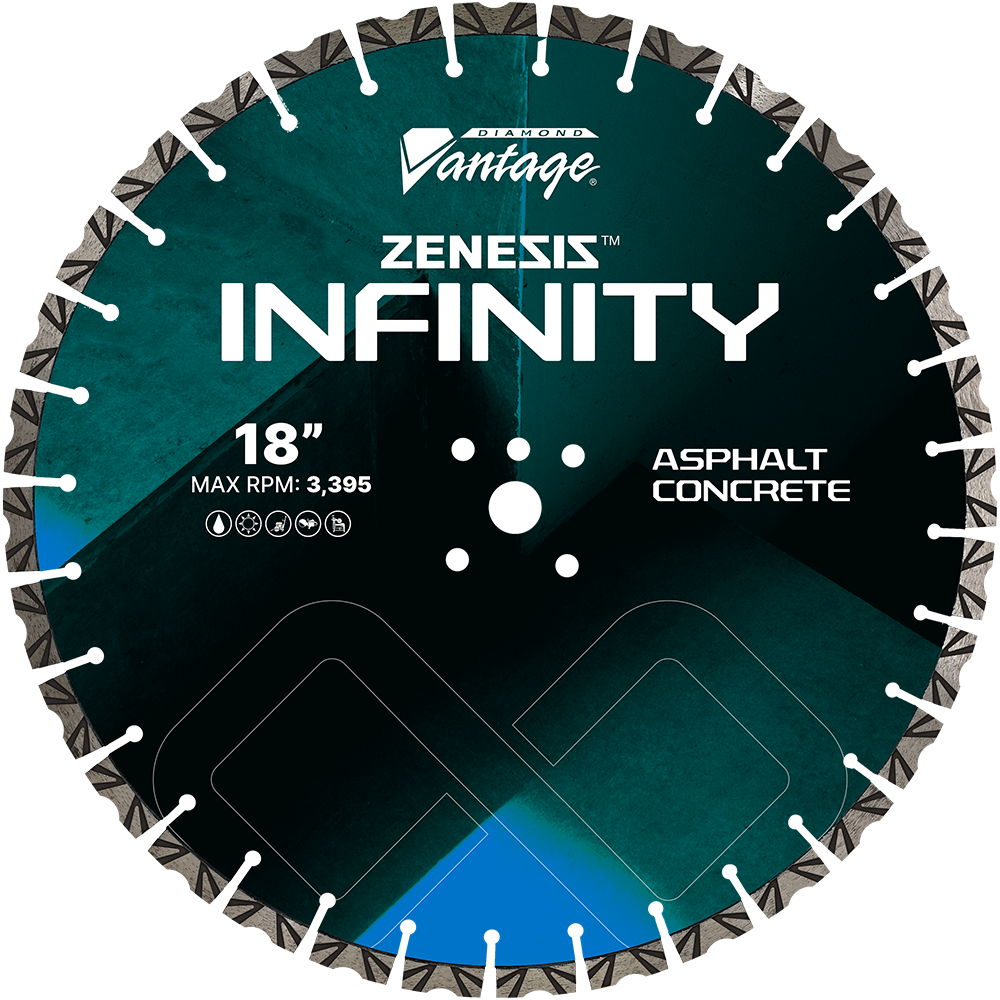

ZENESIS™ INFINITY

concrete pro blade

ZENESIS™ GRADE

Features ZENESIS™, the most advanced diamond pattern for fast cutting
• 15mm (.591") segment height

Application(s)

Concrete

Part No. / Specifications

PART #	SIZE	LIST PRICE
	12"
1212INFINITY	12 X .125	$886.96
1214INFINITY	12 X .140	$933.70
1215INFINITY	12 X .155	$1052.17
1218INFINITY	12 X .187	$1156.52
1225INFINITY	12 X .250	$1398.91
	14"
1412INFINITY	14 X .125	$1021.74
1414INFINITY	14 X .140	$1084.78
1415INFINITY	14 X .155	$1219.57
1416INFINITY	14 X .165	$1246.74
1418INFINITY	14 X .187	$1320.65
1425INFINITY	14 X .250	$1606.52
	16"
1612INFINITY	16 X .125	$1229.35
1614INFINITY	16 X .140	$1294.57
1615INFINITY	16 X .155	$1451.09
1616INFINITY	16 X .165	$1482.61
1618INFINITY	16 X .187	$1577.17
1625INFINITY	16 X .250	$1904.35
	18"
1812INFINITY	18 X .125	$1491.30
1814INFINITY	18 X .140	$1569.57
1815INFINITY	18 X .155	$1748.91
1816INFINITY	18 X .165	$1784.78
1818INFINITY	18 X .187	$1883.70
1825INFINITY	18 X .250	$2254.35
	20"
2012INFINITY	20 X .125	$1683.70
2014INFINITY	20 X .140	$1778.26
2015INFINITY	20 X .155	$1993.48
2016INFINITY	20 X .165	$2933.70
2017INFINITY	20 X .175	$2088.04
2018INFINITY	20 X .187	$2129.35
2021INFINITY	20 X .210	$2371.74
2022INFINITY	20 X .220	$2431.52
2025INFINITY	20 X .250	$2552.17
	22"
2212INFINITY	22 X .125	$1876.09
2214INFINITY	22 X .140	$1980.43
2215INFINITY	22 X .155	$2207.61
2216INFINITY	22 X .165	$2251.09
2217INFINITY	22 X .175	$2300.00
2218INFINITY	22 X .187	$2343.48
2221INFINITY	22 X .210	$2606.52
2222INFINITY	22 X .220	$2667.39
2225INFINITY	22 X .250	$2798.91
	24"
2412INFINITY	24 X .125	$2055.43
2414INFINITY	24 X .140	$2152.17
2415INFINITY	24 X .155	$2393.48
2416INFINITY	24 X .165	$2440.22
2417INFINITY	24 X .175	$2496.74
2418INFINITY	24 X .187	$2544.57
2421INFINITY	24 X .210	$2827.17
2422INFINITY	24 X .220	$2905.43
2425INFINITY	24 X .250	$3047.83
	26"
2614INFINITY	26 X .140	$2553.26
2615INFINITY	26 X .155	$2819.57
2616INFINITY	26 X .165	$2869.57
2617INFINITY	26 X .175	$2955.43
2618INFINITY	26 X .187	$3005.43
2621INFINITY	26 X .210	$3308.70
2622INFINITY	26 X .220	$3383.70
2625INFINITY	26 X .250	$3534.78
	28"
2815INFINITY	28 X .155	$3186.96
2816INFINITY	28 X .165	$3241.30
2817INFINITY	28 X .175	$3326.09
2818INFINITY	28 X .187	$3380.43
2821INFINITY	28 X .210	$3703.26
2822INFINITY	28 X .220	$3926.09
2825INFINITY	28 X .250	$4088.94
	30"
3015INFINITY	30 X .155	$3425.00
3016INFINITY	30 X .165	$3481.52
3017INFINITY	30 X .175	$3563.04
3018INFINITY	30 X .187	$3620.65
3021INFINITY	30 X .210	$3964.13
3022INFINITY	30 X .220	$4121.74
3025INFINITY	30 X .250	$4293.48
	32"
3217INFINITY	32 X .175	$3880.43
3218INFINITY	32 X .187	$3940.22
3221INFINITY	32 X .210	$4304.35
3222INFINITY	32 X .220	$4381.52
3225INFINITY	32 X .250	$4564.13
	36"
3617INFINITY	36 X .155	$4368.48
3617INFINITY	36 X .165	$4439.13
3617INFINITY	36 X .175	$4520.65
3618INFINITY	36 X .187	$4591.30
3621INFINITY	36 X .210	$5016.30
3622INFINITY	36 X .220	$5325.00
3625INFINITY	36 X .250	$5536.96
	40"
4022INFINITY	40 X .220	$5960.87
4025INFINITY	40 X .250	$6183.70
	42"
4217INFINITY	42 X .175	$5766.30
4218INFINITY	42 X .187	$5844.57
4221INFINITY	42 X .210	$6308.70
4222INFINITY	42 X .220	$6748.91
4225INFINITY	42 X .250	$6981.52
	48"
4817INFINITY	48 X .175	$6847.83
4818INFINITY	48 X .187	$6938.04
4821INFINITY	48 X .210	$7484.78
4822INFINITY	48 X .220	$7747.83
4825INFINITY	48 X .250	$8020.65
	54"
5417INFINITY	54 X .175	$7973.91
5418INFINITY	54 X .187	$8075.00
5421INFINITY	54 X .210	$8681.52
5422INFINITY	54 X .220	$8928.26
5425INFINITY	54 X .250	$9231.52

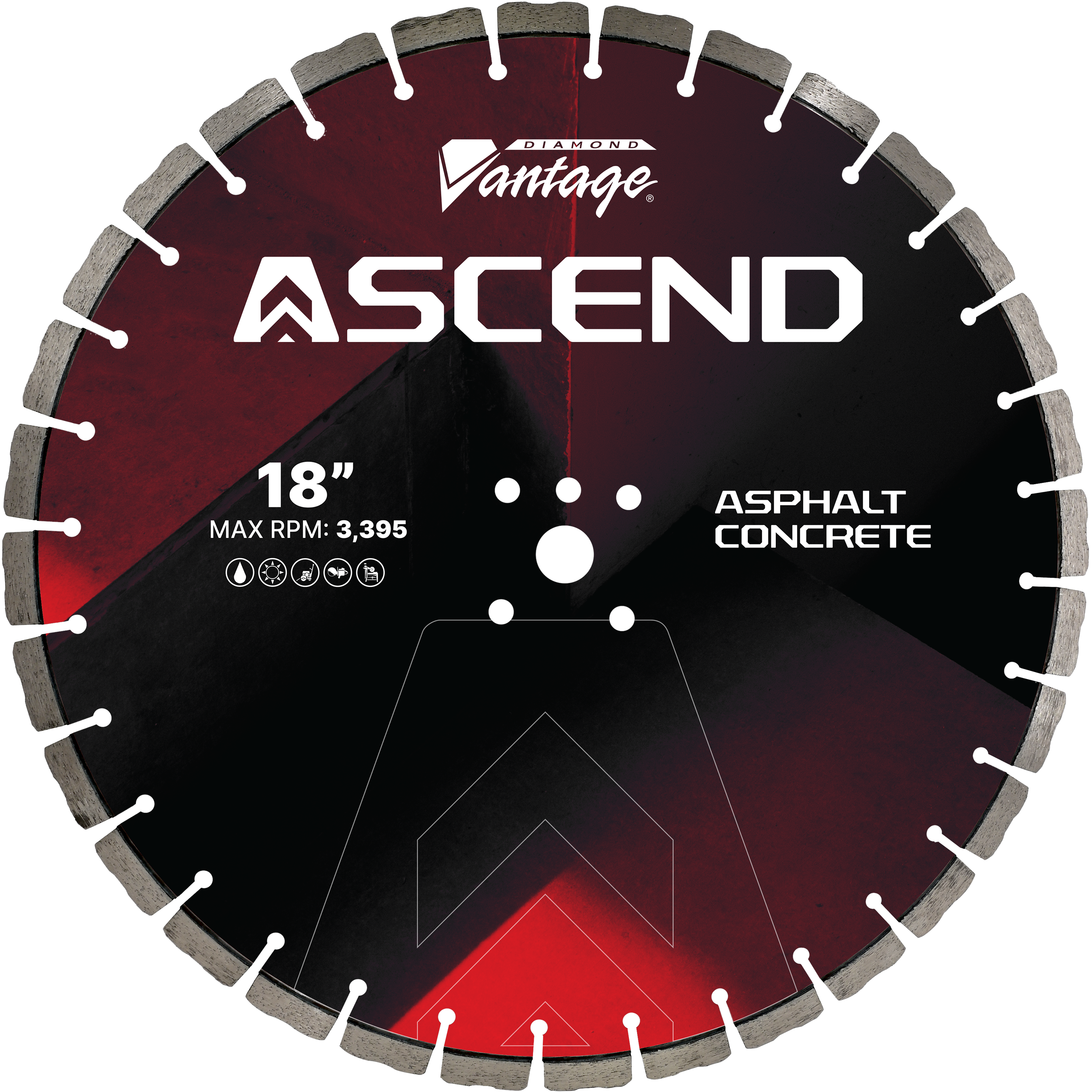

Ascend

concrete pro blade

HEAVY DUTY GRADE

• 13mm (.531") segment height
• Castle segment

Application(s)

Concrete

Part No. / Specifications

PART #	SIZE	LIST PRICE
	12"
1212ASCEND	12 X .125	$663.04
1214ASCEND	12 X .140	$693.48
1215ASCEND	12 X .155	$773.91
1218ASCEND	12 X .187	$868.48
1225ASCEND	12 X .250	$1044.57
	14"
1412ASCEND	14 X .125	$768.48
1414ASCEND	14 X .140	$809.78
1415ASCEND	14 X .155	$901.09
1416ASCEND	14 X .165	$916.30
1418ASCEND	14 X .187	$992.39
1425ASCEND	14 X .250	$1202.17
	16"
1612ASCEND	16 X .125	$930.43
1614ASCEND	16 X .140	$973.91
1615ASCEND	16 X .155	$1080.43
1616ASCEND	16 X .165	$1097.83
1618ASCEND	16 X .187	$1193.48
1625ASCEND	16 X .250	$1432.61
	18"
1812ASCEND	18 X .125	$1150.00
1814ASCEND	18 X .140	$1202.17
1815ASCEND	18 X .155	$1325.00
1816ASCEND	18 X .165	$1344.57
1818ASCEND	18 X .187	$1444.57
1825ASCEND	18 X .250	$1715.22
	20"
2012ASCEND	20 X .125	$1298.91
2014ASCEND	20 X .140	$1366.30
2015ASCEND	20 X .155	$1516.30
2016ASCEND	20 X .165	$1540.22
2017ASCEND	20 X .175	$1595.65
2018ASCEND	20 X .187	$1635.87
2021ASCEND	20 X .210	$1797.83
2022ASCEND	20 X .220	$1841.30
2025ASCEND	20 X .250	$1945.65
	22"
2212ASCEND	22 X .125	$1459.78
2214ASCEND	22 X .140	$1533.70
2215ASCEND	22 X .155	$1690.22
2216ASCEND	22 X .165	$1717.39
2217ASCEND	22 X .175	$1765.22
2218ASCEND	22 X .187	$1809.78
2221ASCEND	22 X .210	$1984.78
2222ASCEND	22 X .220	$2028.26
2225ASCEND	22 X .250	$2141.30
	24"
2412ASCEND	24 X .125	$1607.61
2414ASCEND	24 X .140	$1671.74
2415ASCEND	24 X .155	$1836.96
2416ASCEND	24 X .165	$1868.48
2417ASCEND	24 X .175	$1921.74
2418ASCEND	24 X .187	$1968.48
2421ASCEND	24 X .210	$2157.61
2422ASCEND	24 X .220	$2217.39
2425ASCEND	24 X .250	$2340.22
	26"
2614ASCEND	26 X .140	$2038.04
2615ASCEND	26 X .155	$2222.83
2616ASCEND	26 X .165	$2253.26
2617ASCEND	26 X .175	$2338.04
2618ASCEND	26 X .187	$2389.13
2621ASCEND	26 X .210	$2591.30
2622ASCEND	26 X .220	$2645.65
2625ASCEND	26 X .250	$2777.17
	28"
2815ASCEND	28 X .155	$2551.09
2816ASCEND	28 X .165	$2538.70
2817ASCEND	28 X .175	$2668.48
2818ASCEND	28 X .187	$2722.83
2821ASCEND	28 X .210	$2938.04
2822ASCEND	28 X .220	$3139.13
2825ASCEND	28 X .250	$3279.35
	30"
3015ASCEND	30 X .155	$2748.91
3016ASCEND	30 X .165	$2782.61
3017ASCEND	30 X .175	$2864.13
3018ASCEND	30 X .187	$2921.74
3021ASCEND	30 X .210	$3151.09
3022ASCEND	30 X .220	$3285.87
3025ASCEND	30 X .250	$3434.78
	32"
3217ASCEND	32 X .175	$3140.22
3218ASCEND	32 X .187	$3201.09
3221ASCEND	32 X .210	$3443.48
3222ASCEND	32 X .220	$3498.74
3225ASCEND	32 X .250	$3654.35
	36"
3615ASCEND	36 X .155	$3533.70
3616ASCEND	36 X .165	$3576.09
3217ASCEND	36 X .175	$3657.61
3618ASCEND	36 X .187	$3728.26
3621ASCEND	36 X .210	$4010.87
3622ASCEND	36 X .220	$4291.30
3625ASCEND	36 X .250	$4476.09
	40"
4022ASCEND	40 X .220	$4878.26
4025ASCEND	40 X .250	$5071.74
	42"
4217ASCEND	42 X .175	$4820.65
4218ASCEND	42 X .187	$4898.91
4221ASCEND	42 X .210	$5208.70
4222ASCEND	42 X .220	$5617.39
4225ASCEND	42 X .250	$5818.48
	48"
4817ASCEND	48 X .175	$5736.96
4218ASCEND	48 X .187	$5828.26
4821ASCEND	48 X .210	$6192.39
4822ASCEND	48 X .220	$6419.57
4825ASCEND	48 X .250	$6656.52
	54"
5417ASCEND	54 X .175	$6740.22
5418ASCEND	54 X .187	$6841.30
5421ASCEND	54 X .210	$7245.65
5422ASCEND	54 X .220	$7453.26
5425ASCEND	54 X .250	$7715.22

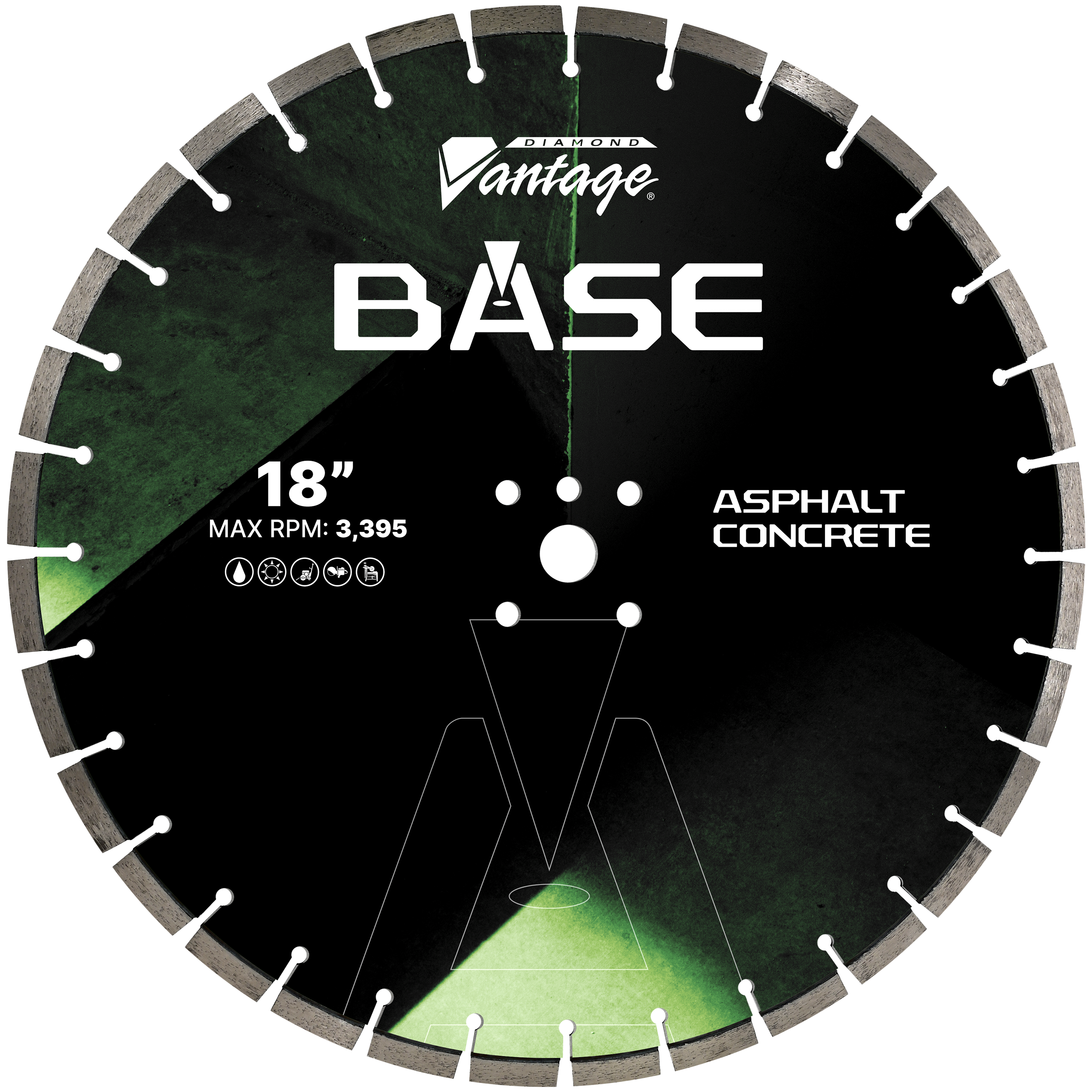

Base

concrete pro blade

STANDARD GRADE

• 12mm (.472") segment height

Application(s)

Concrete

Part No. / Specifications

PART #	SIZE	LIST PRICE
	12"
1212BASE	12 X .125	$604.35
1214BASE	12 X .140	$627.17
1215BASE	12 X .155	$695.65
1218BASE	12 X .187	$782.61
1225BASE	12 X .250	$933.70
	14"
1412BASE	14 X .125	$698.91
1414BASE	14 X .140	$733.70
1415BASE	14 X .155	$811.96
1416BASE	14 X .165	$829.35
1418BASE	14 X .187	$893.48
1425BASE	14 X .250	$1073.91
	16"
1612BASE	16 X .125	$852.17
1614BASE	16 X .140	$884.78
1615BASE	16 X .155	$976.09
1616BASE	16 X .165	$996.74
1618BASE	16 X .187	$1078.26
1625BASE	16 X .250	$1283.70
	18"
1812BASE	18 X .125	$1060.87
1814BASE	18 X .140	$1101.09
1815BASE	18 X .155	$1205.43
1816BASE	18 X .165	$1229.35
1818BASE	18 X .187	$1313.04
1825BASE	18 X .250	$1545.65
	20"
2012BASE	20 X .125	$1198.91
2014BASE	20 X .140	$1252.17
2015BASE	20 X .155	$1382.61
2016BASE	20 X .165	$1408.70
2018BASE	20 X .187	$1453.26
2025BASE	20 X .250	$1488.04
	22"
2212BASE	22 X .125	$1351.09
2214BASE	22 X .140	$1409.78
2215BASE	22 X .155	$1545.65
2216BASE	22 X .165	$1611.96
2218BASE	22 X .187	$1650.00
2221BASE	22 X .210	$1800.00
2222BASE	22 X .220	$1840.22
2225BASE	22 X .250	$1934.78
	24"
2412BASE	24 X .125	$1490.22
2414BASE	24 X .140	$1539.13
2415BASE	24 X .155	$1680.43
2416BASE	24 X .165	$1710.87
2417BASE	24 X .175	$1756.52
2418BASE	24 X .187	$1796.74
2421BASE	24 X .210	$1958.70
2422BASE	24 X .220	$2015.22
2425BASE	24 X .250	$2117.39
	26"
2614BASE	26 X .140	$1895.65
2615BASE	26 X .155	$2055.43
2616BASE	26 X .165	$2088.04
2617BASE	26 X .175	$2160.87
2618BASE	26 X .187	$2204.35
2621BASE	26 X .210	$2378.26
2622BASE	26 X .220	$2429.35
2625BASE	26 X .250	$2538.04
	28"
2815BASE	28 X .155	$2372.83
2616BASE	28 X .165	$2407.61
2617BASE	28 X .175	$2479.35
2618BASE	28 X .187	$2526.09
2621BASE	28 X .210	$2719.87
2622BASE	28 X .220	$2908.70
2625BASE	28 X .250	$3025.00
	30"
3015BASE	30 X .155	$2558.70
3016BASE	30 X .165	$2595.65
3017BASE	30 X .175	$2663.04
3018BASE	30 X .187	$2713.04
3021BASE	30 X .210	$2909.78
3022BASE	30 X .220	$3040.22
3025BASE	30 X .250	$3164.13
	32"
3217BASE	32 X .175	$2927.17
3218BASE	32 X .187	$2979.35
3221BASE	32 X .210	$3188.04
3222BASE	32 X .220	$3236.96
3225BASE	32 X .250	$3367.39
	36"
3615BASE	36 X .155	$3298.91
3616BASE	36 X .165	$3344.57
3617BASE	36 X .175	$3408.70
3618BASE	36 X .187	$3469.57
3621BASE	36 X .210	$3713.04
3622BASE	36 X .220	$3989.13
3625BASE	36 X .250	$4141.30
	40"
4022BASE	40 X .220	$4561.96
4025BASE	40 X .250	$4721.74
	42"
4217BASE	42 X .175	$4548.91
4218BASE	42 X .187	$4615.22
4221BASE	42 X .210	$4882.61
4222BASE	42 X .220	$5285.87
4225BASE	42 X .250	$5453.26
	48"
4817BASE	48 X .175	$5418.48
4818BASE	48 X .187	$5496.74
4821BASE	48 X .210	$5809.78
4822BASE	48 X .220	$6031.52
4825BASE	48 X .250	$6227.17
	54"
5417BASE	54 X .175	$6385.87
5418BASE	54 X .187	$6472.83
5421BASE	54 X .210	$6820.65
5422BASE	54 X .220	$7020.65
5425BASE	54 X .250	$7238.04

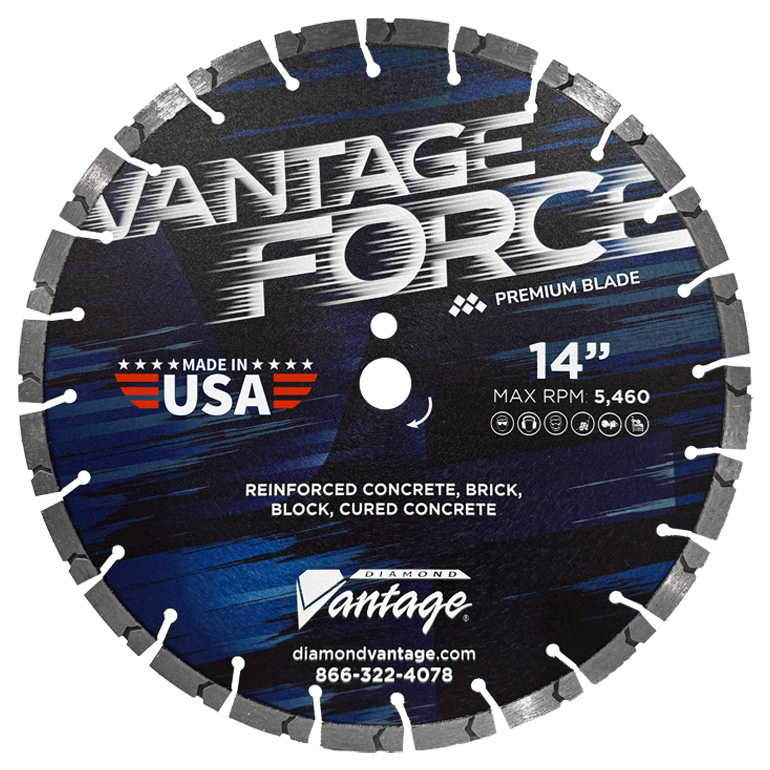

Vantage Force

general purpose blade

PREMUIM GRADE

• 12mm (.472") segment height
• Steel core
• Slanted T-Slot
• Made in USA

Application(s)

Reinforced Concrete, Brick, Block, Cured Concrete

Part No. / Specifications

PART #	SPECS	LIST PRICE
1212EVF	12" X 0.125" X 1"-20MM, W/ PH, SLANTED T SLOT	Call for pricing
1412EVF	14" X 0.125" X 1"-20MM, W/ PH, SLANTED T SLOT	Call for pricing
1612EVF	16" X 0.125" X 1"-20MM, W/ PH, SLANTED T SLOT	Call for pricing

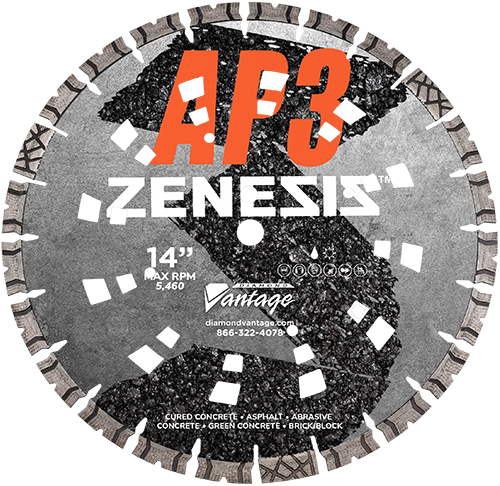

ZENESIS AP3

all purpose blade

ZENESIS™ GRADE

• 14mm (.551") segment height
• Unique segment design on drop segment
• ZENESIS™ Pattern Diamond Technology for maximum performance and consistency from blade to blade

Application(s)

Asphalt, Cured Concrete, Abrasive Concrete, Green Concrete, Brick/Block

Part No. / Specifications

PART #	SIZE	LIST PRICE
12BEDUZX4-AP3	12 x .125 x 20mm	$419.64
1412BEDUZX4-AP3	14 x .125 x 20mm	$561.99
1612BEDUZX4-AP3	16 x .125 x 1/20mm	$692.39
1814EDUZX4-AP3	18 x .140 x 1/20mm	$962.87
2014EDUZX4-AP3	20 x .140 x 1/20mm	$976.23
2414EDUZX4-AP3	24 x .140 x 1/20mm	$1391.98

Vantage Edge

all purpose

VALUE GRADE

• 12mm (.472”) segment height
• 4 deep UCR with 15mm (.591”) segment height
• Slanted T-Slot Core design
• Made in USA

Application(s)

Asphalt, Reinforced Concrete, Brick, Block, Cured Concrete

Part No. / Specifications

PART #	SIZE	LIST PRICE
1212EDV-EDGE	12 x .125 x 1/20mm	$171.03
1212BDV-EDGE	12 x .125 x 20mm	$171.03
1412EDV-EDGE	14 X .125 X 1/20mm	$214.63
1412BDV-EDGE	14 x .125 x 20mm	$214.63
1612EDV-EDGE	16 X .125 X 1/20mm	$286.85
1612BDV-EDGE	16 x .125 x 20mm	$286.85
1812EDV-EDGE	18 x .125 x 1/20mm	$421.14
1812BDV-EDGE	18 x .125 x 20mm	$421.14

Hybrid
DIAMOND WIRE

HEAVY DUTY GRADE

• Available for wet sawing only
• 10.5mm bead size
• Crimp coupler available

Application(s)

Concrete / Regular Type

Part No. / Specifications

Beads/ per meter	Bead Size	Part #	LIST PRICE per meter
Red wire
40	10.5mm	40105WSCX1-2HBP	$379.60
Gray wire
40	11.5mm	40115WSCX1-2HBG	$400.70
Crimp coupler
		COUPLER	$6.11

SKID PLATES

early entry gorilla saws

• 8” Skid plate for Gorilla Concrete Tools saws 8EE and GS100
• 10” Skid Plate for Gorilla Concrete Tools saws GS300
• 0.090 thickness
• Pinless

Part No. / Specifications

PART #	SIZE	LIST PRICE
DV-GCT-8-54-R2	SKID PLATE for 8” blades	$179.06
DV-GCT-GS300-81-SP	SKID PLATE for 10” blades	$179.06
DV-GCT-GS700-70	SKID PLATE for 14” blades	$242.00

ZENESIS™ CARBON 2

bridge saw blades

ZENESIS™ GRADE

• 10mm (.394”) segment height
Introducing the groundbreaking ZENESIS™ Carbon 2 diamond blade, designed for superior performance in cutting critically hard sintered stones such as Dekton® , Neolith, and Lapitec. ... Experience exceptional results even at high speeds, as these blades deliver a precision razor- sharp edge on both the top and bottom surfaces, ensuring unparalleled quality, especially during miter cutting. Crafted with the highest quality steel core and reinforced with plates to eliminate flexing and deflection during extended cuts, the ZENESIS™ Carbon 2 sets a new standard in durability and stability. This cutting-edge blade utilizes Sinterized Particle Tech to masterfully cut through ultracompact surfaces created by blending glass, porcelain, and quartz materials. Elevate your stone cutting experience with the ZENESIS™ Carbon 2 – where precision meets perfection in the stone industry.

Application(s)

Porcelain, Sintered Stone, Petrified Wood, Slabs Made With Geodes, Dekton® Approved

Part No. / Specifications

SIZE	PART #	LIST PRICE
12 x .125 x 60/50mm	S-1210LWZX4-CARB2	call for pricing
14 x .125 x 60/50mm	S-1410LWZX4-CARB2	call for pricing
16 x .125 x 60/50mm	S-1613LWZX4-CARB2	call for pricing
18 x .125 x 60/50mm	S-1812LWZX4-CARB2	call for pricing

ZENESIS™ Quartzite 2

bridge saw blades

ZENESIS™ GRADE

• 20mm (.787”) segment height
• Quartzite is a unique natural rock made up of interlocking quartz crystals resulting in a remarkably dense and hard rock. A specialized blade is required to quickly and cleanly cut a material of this quality. The ZENESIS™ Quartzite blade provides superior cutting performance on quartzite.
• Unique segment design for fast cutting speeds; has cut Taj Mahal at over 6 ft./min. feed rate
• Patterned diamond matrix for straight chip-free cuts
• Soft bond for continuous use without dressing

Application(s)

Granite, Engineered Stone, Quartzite

Part No. / Specifications

SIZE	PART #	LIST PRICE
12 x .125 x 60/50mm	S-1212LWZX4-20Q2	call for pricing
14 x .125 x 60/50mm	S-1412LWZX4-20Q2	call for pricing
16 x .134 x 60/50mm	S-1613LWZX4-20Q2	call for pricing
18 x .150 x 60/50mm	S-1815LWZX4-20Q2	call for pricing
20 x .150 x 60/50mm	S-2015LWZX4-20Q2	call for pricing

ZENESIS™ MARBLE

bridge saw blades

ZENESIS™ GRADE

• 10mm (.394”) segment height
• ZENESIS™ now offers its exclusive patterned technology in a bridge saw blade designed specifically to cut marble and other soft stone products. As expected, this latest ZENESIS™ Marble blade offers exceptionally smooth, fast and chip-free cutting on all types of marble. This blade is available in diameters of 12” to 20” and is guaranteed to set the standard of performance and meet the demands of marble fabricators everywhere.
• Designed specifically to cut marble
• Exceptionally smooth, fast, chip-free cutting
• Silent core

Application(s)

Marble

Part No. / Specifications

SIZE	PART #	LIST PRICE
12 x .125 x 60/50mm	S-1212LWMSZX4	call for pricing
14 x .125 x 60/50mm	S-1412LWMSZX4	call for pricing
16 x .125 x 60/50mm	S-1612LWMSZX4	call for pricing
18 x .140 x 60/50mm	S-1814LWMSZX4	call for pricing
20 x .140 x 60/50mm	S-2014LWMSZX4	call for pricing

ZENESIS™ Z-MAX

stone turbo blade

ZENESIS™ GRADE

Introducing the cutting-edge Z-Max Turbo Blade, the epitome of high-performance in small-diameter stone blades. Its distinctive segment design ensures ...remarkably fast and precise cuts in both natural and engineered stones. Experience unparalleled efficiency as this blade effortlessly navigates through any stone surface. The Z-Max Turbo Blade features oversized cooling holes that prevent overheating, even when cutting through 3cm quartzite. This ensures consistent and reliable performance, making it the go-to choice for demanding stone-cutting applications.

• Flush cut adapter sold separately
• Available with quad adaptor holes in sizes 4.5”, 5.3”, 6”, 7”

Application(s)

Granite, Quartzite, Engineered Stone

Part No. / Specifications

SIZE	PART #	LIST PRICE
4.5" x .095 x 7/8-20mm-5/8 w/ Flush Cut Holes	S-4509CDZMX	call for pricing
5.3" x .095 x 7/8-20mm-5/8 w/ Flush Cut Holes	S-05309CDZMX	call for pricing
6" x .095 x 7/8-20mm-5/8 w/ Flush Cut Holes	S-0609CDZMX	call for pricing
7" x .095 x U/A w/ Flush Cut Holes	S-0709UDZMX	call for pricing
flush Cut Adapter
4 Screw to 5/8"-11	FCA	$26.44

ZENESIS™ QUARTZITE

turbo rim

ZENESIS™ GRADE

• 10mm (.394”) segment height
• The new ZENESIS™ Quartzite turbo blade is the first small-diameter blade we engineered specifically for the hardest quartzite. Where other turbo blades bounce, chip, or stop cutting after a few inches, this blade cuts easily through this material. Unique turbo rim design with added drop segments makes this blade immediately stand out from the competition. And if you think it does well in quartzite, you’ll be amazed at how it works in any other natural stone.
• Available with quad adapter holes in sizes 5” to 7”
• Unique turbo rim design
• Flush cut adapter sold separately

Application(s)

Quartzite, All Natural Stone, Granite, Engineered Stone

Part No. / Specifications

SIZE	PART #	LIST PRICE
5 x .083 x ⅞-20mm-⅝	S-0508CDZQB	call for pricing
6 x .095 x ⅞-20mm-⅝	S-0609CDZQB	call for pricing
7 x .095 x U/A -⅞-⅝	S-0709CDZQB	call for pricing
flush Cut Adapter
4 Screw to 5/8"-11	FCA	$26.44

ZENESIS™ Obsidian

stone core bit

ZENESIS™ GRADE

ZENESIS™ Obsidian Diamond Core Bit is the most versatile tile and stone core bit ever made. It comes with more features than any core bit on the market. New technology allows this bit to drill perfect clean holes in porcelain, granite, marble, ceramic, DEKTON® and quartzite dry or wet!
Exclusive ZENESIS™ pattern diamond segments give up to 70% longer life over random pattern segments.* Unique drop segments for added durability and weld protection. First core bit ever with depth gauge lines at 20mm and 30mm! Brazed diamonds on the outside and inside of barrel prevent binding and make it easy to remove plug 5/8-11 thread fits all grinders and polishers

Application(s)

Engineered Stone, All Natural Stone, and Quartzite

Part No. / Specifications

SIZE	PART #	LIST PRICE
1 1/4 x .125 x 5/8-11	S-01212HDZX4-OBS	call for pricing
1 3/8 x .125 x 5/8-11	S-01312HDZX4-OBS	call for pricing
1 1/2 x .125 x 5/8-11	S-01512HDZX4-OBS	call for pricing
2 x .125 x 5/8-11	S-02012HDZX4-OBS	call for pricing
2 1/4 x .125 x 5/8-11	S-02212HDZX4-OBS	call for pricing
2 1/2 x .125 x 5/8-11	S-02512HDZX4-OBS	call for pricing
3 x .125 x 5/8-11	S-03012HDZX4-OBS	call for pricing

ZENESIS™ Z-FLEX PADS

polishing pads

ZENESIS™ GRADE

Discover ZENESIS™ Z-Flex Dry Ceramic Polishing Pads, revolutionizing stone polishing. Their unrivaled flexibility, powered by cutting-edge ceramic bond technology, redefines precision. Ideal for intricate edges like ogee, these pads elevate the polishing experience. With added grit options for exotic materials and restoration, they ensure impeccable results on natural stone, porcelain, and glass. Experience the evolution of polishing with ZENESIS™ Z-Flex Pads, where flexibility meets flawless precision.

Application(s)

All Natural Stone, Engineered Stone

Part No. / Specifications

SIZE	BACKING	GRIT	PART #
4"	Flexible Purple Velcro®	30	S-4DPPHZ-30
4"	Flexible Dark Blue Velcro®	50	S-4DPPHZ-50
4"	Flexible Yellow Velcro®	100	S-4DPPHZ-100
4"	Flexible Orange Velcro®	200	S-4DPPHZ-200
4"	Flexible Red Velcro®	400	S-4DPPHZ-400
4"	Flexible Green Velcro®	800	S-4DPPHZ-800
4"	Flexible Light Blue Velcro®	1500	S-4DPPHZ-1500
4"	Flexible Brown Velcro®	3000	S-4DPPHZ-3000
4"	Flexible White Velcro®	5000	S-4DPPHZ-5000
4"	#30-5000 Grit, Pad set, Rigid Velcro®	SET	S-4DPPHZ-SET

SMD10

core drill

Spindle thread size 1 1/4"-7 (industry standard)
Motor comes with slip clutch that can be easily adjusted from outside the motor
4 adjustable leveling screws for drilling uneven surfaces
Water valve swivels 360 degrees
Engineered for both vertical and horizontal drilling
Standard pole: SB-594-1535

Part No. / Specifications

Power	120V, 18.5A
Max Bit Capacity	10"
Max Output	2.4kW (3.2HP)
Spindle Thread	1-1/4"-7
Column Thickness	1-15/16"
Stand Height	31-7/8"
Carriage Travel	19-7/8"
Anchor Base	5.6" W x 7.9" L
Clutch Type	Slip
Speed	490/1150 RPM
Weight	48 lbs. (21.7 kg)

DUSTLESS CONNECTOR
Available for all sizes

SMD14

core drill

Spindle thread size 1 1/4"-7 (industry standard)
Motor comes with slip clutch that can be easily adjusted from outside the motor
4 adjustable leveling screws for drilling uneven surfaces
Water valve swivels 360 degrees
Engineered for both vertical and horizontal drilling
Standard pole: SB-594-1535

Part No. / Specifications

Power	120V, 24A
Max Bit Capacity	16"
Max Output	3.6kW (4.9HP)
Spindle Thread	1-1/4"-7
Column Thickness	2-5/16”
Stand Height	39-3/8”
Carriage Travel	24-3/8”
Anchor Base	7” W x 10.4” L
Clutch Type	Slip
Speed	300/700/950RPM
Weight	65.3lbs(29.6kg) Excluding power cable

DUSTLESS CONNECTOR
Available for all sizes

NEW PRODUCTS

Pro Blades

High Speed/Masonry & Low HP Flat Saw

Speciality products

Early Entry

Stone products

CORE DRILLS
