SPECIALTY PRODUCTS

HOME / PRODUCTS / SPECIALTY PRODUCTS

WIRE / PAVEMENT GRINDING

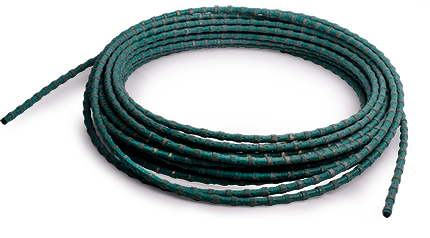

DIAMOND WIRE
DIAMOND WIRE
    PREMUIM GRADE
  • • Available for wet or dry sawing
  • • 10.5 & 11mm bead sizes
    Application(s)
  • Hard Concrete / See all types in specifications
  • Part No. / Specifications
    Application Type Beads/
    Meter    		 Bead Size Part # List PRICE
    per meter
    Critically Hard Concrete  Regular 40 10.5mm  40105WSCX2-1 $752.58
    Concrete  Regular  40 10.5mm  40105WSCX2 $674.42
    Concrete  Electroplated  40 10.5mm  40105WSCEW $524.53
    Concrete,
    w/heavy steel     		 Brazed Single
    Layer (BSL)     		 48 10.5mm  48105WSCBSLR $813.56
    Concrete,
    w/heavy steel     		 Brazed Single
    Layer (BSL)     		 48 11mm  48110WSCBSL $663.66
    Granite (class 3-4)  Regular  36 11mm  36110WSGX2 $471.04

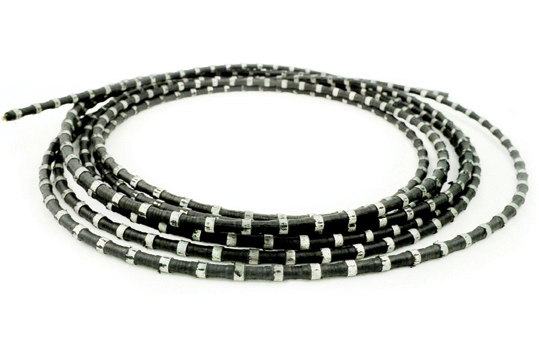

HYBRID DIAMOND WIRE
HYBRID DIAMOND WIRE

Hybrid
DIAMOND WIRE
    HEAVY DUTY GRADE
  • • Available for wet sawing only
  • • 10.5mm bead size
  • • Crimp coupler available
    Application(s)
  • Concrete / Regular Type
  • Part No. / Specifications
    Beads/
    per meter    		 Bead Size Part # LIST PRICE
    per meter
    Red wire
    40 10.5mm 40105WSCX1-2HBP $379.60
    Gray wire
    40 11.5mm 40115WSCX1-2HBG $400.70

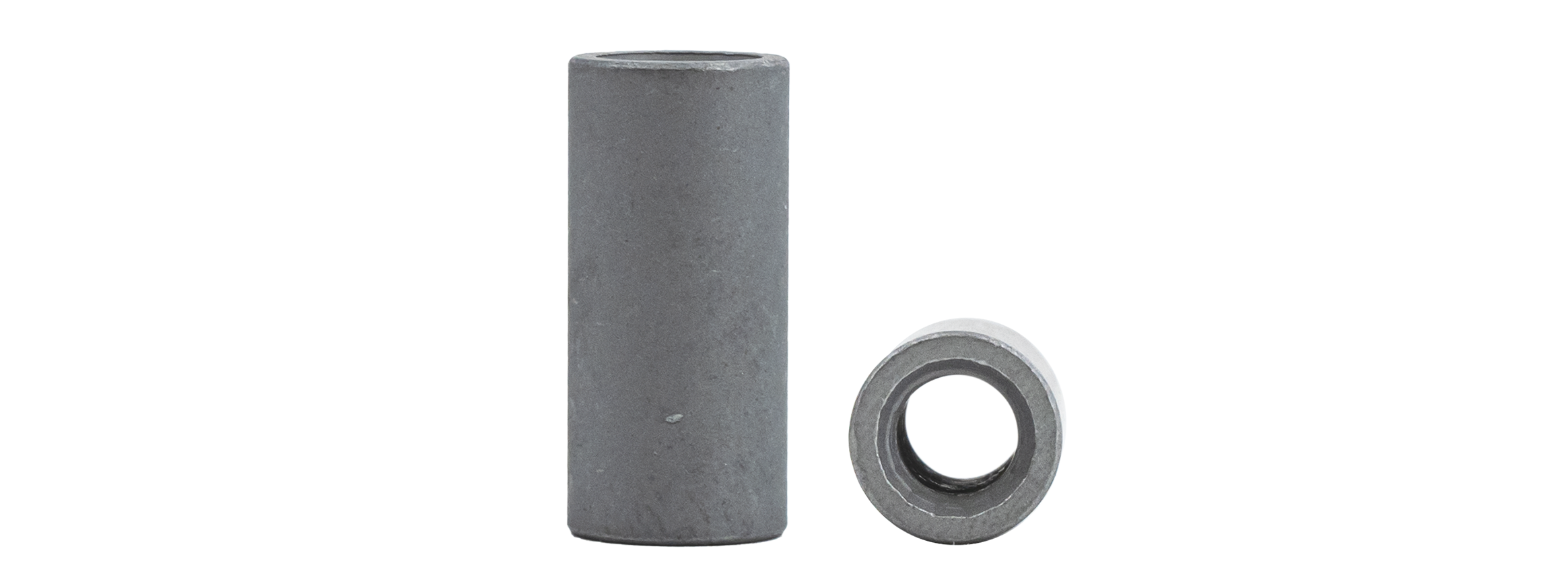

    Crimp coupler
    COUPLER $6.11

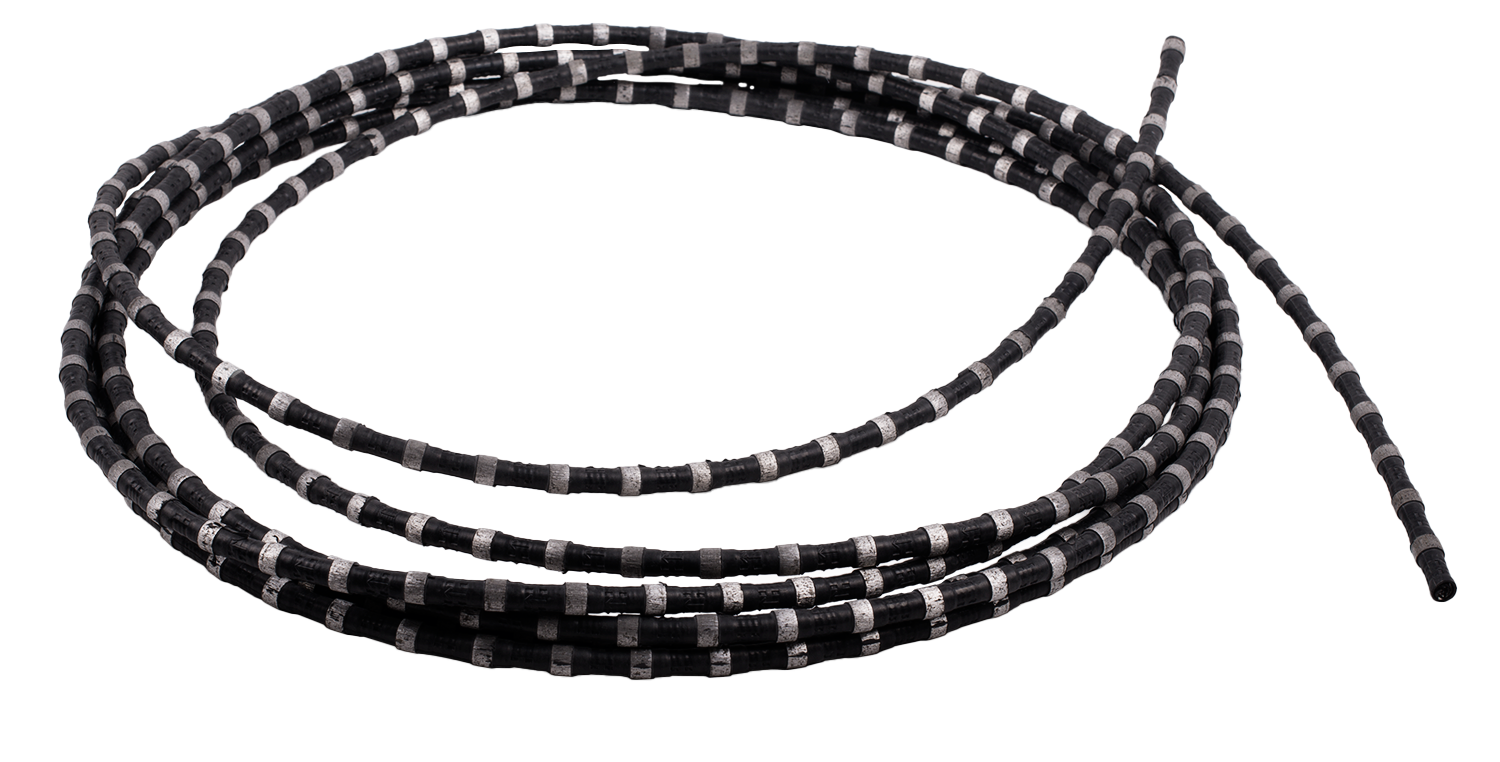

ECONOMY DIAMOND WIRE
ECONOMY
DIAMOND WIRE
    ECONOMY GRADE
  • • Available for wet sawing only
  • • 10.5mm bead size
    Application(s)
  • Concrete / Regular Type

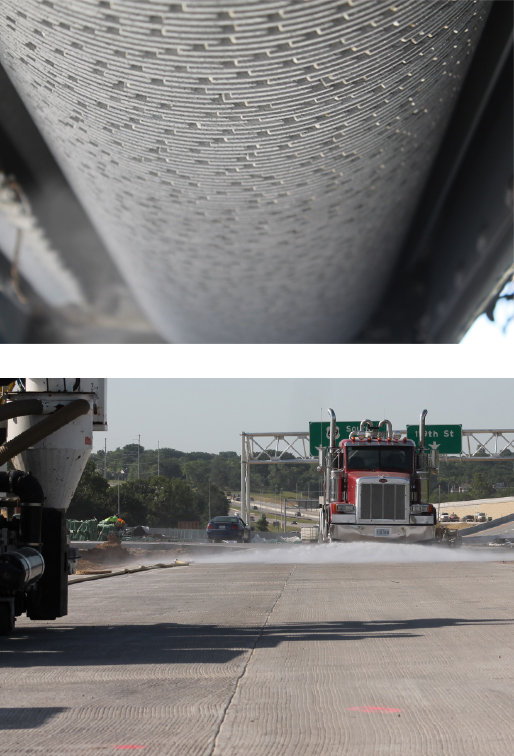

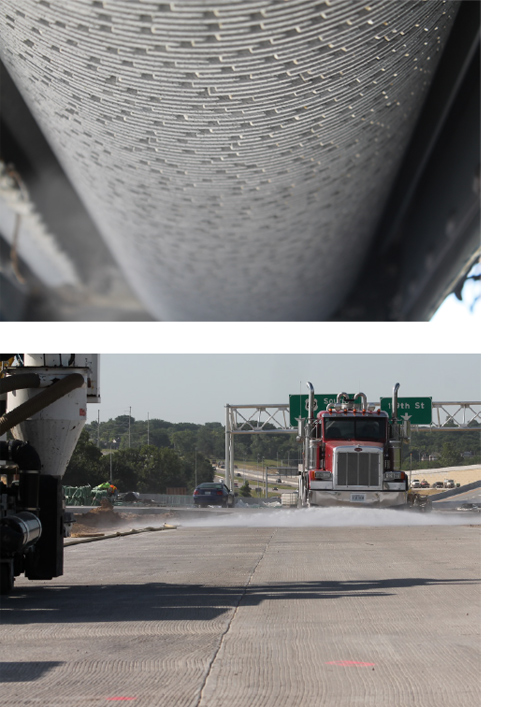

PAVEMENT GRINDING
PAVEMENT GRINDING
  • Diamond Vantage® offers blades for removing layers of concrete or asphalt. These blades are stacked together with spacers between the blades. This offers incredibly efficient removal of any unwanted pavement.
  • Grinding can solve many irregularities in the pavement, including:
    • Faulting at joints or cracks
    • Roughness
    • Wheel ruts in older concrete
    • High noise levels
    • Warping caused by moisture
  • Our grinding blades are available with ZENESIS™ Technology 2.0, the world's most advanced pattern technology, which ensures smooth consistent grinds and long blade life.
  • Call for Pricing!

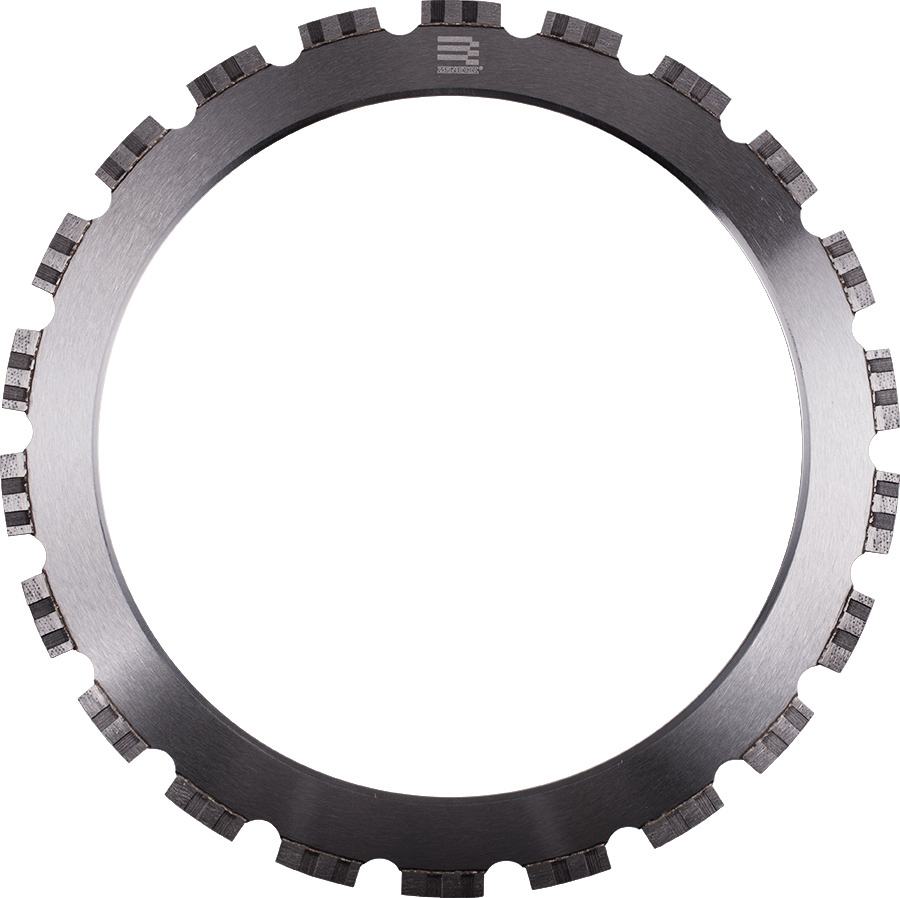

RING SAW

ZENESIS
ZENESIS™
ring saw blade
    ZENESIS™ GRADE
  • Exclusive "patterned" technology for maximum peformance
  • • 10mm (.394") segment height
  • • Offers 10" depth of cut
  • • Includes free drive wheel
  • • Available in various sizes and bonds based on application
    Application(s)
  • 1 bond - old, hard concrete
  • 2 bond - cured concrete
  • 3 bond - abrasive materials
  • Part No. / Specifications
    PART # SIZE LIST PRICE
    1416RZX4-1 14 X .165 X Drive (1 bond) $757.04
    1416RZX4 14 X .165 X Drive (2 bond) $757.04
    1423RZX4 14 X .235 X Drive (2 bond) $908.49
    1416RZX4-3 14 X .165 X Drive (3 bond) $757.04

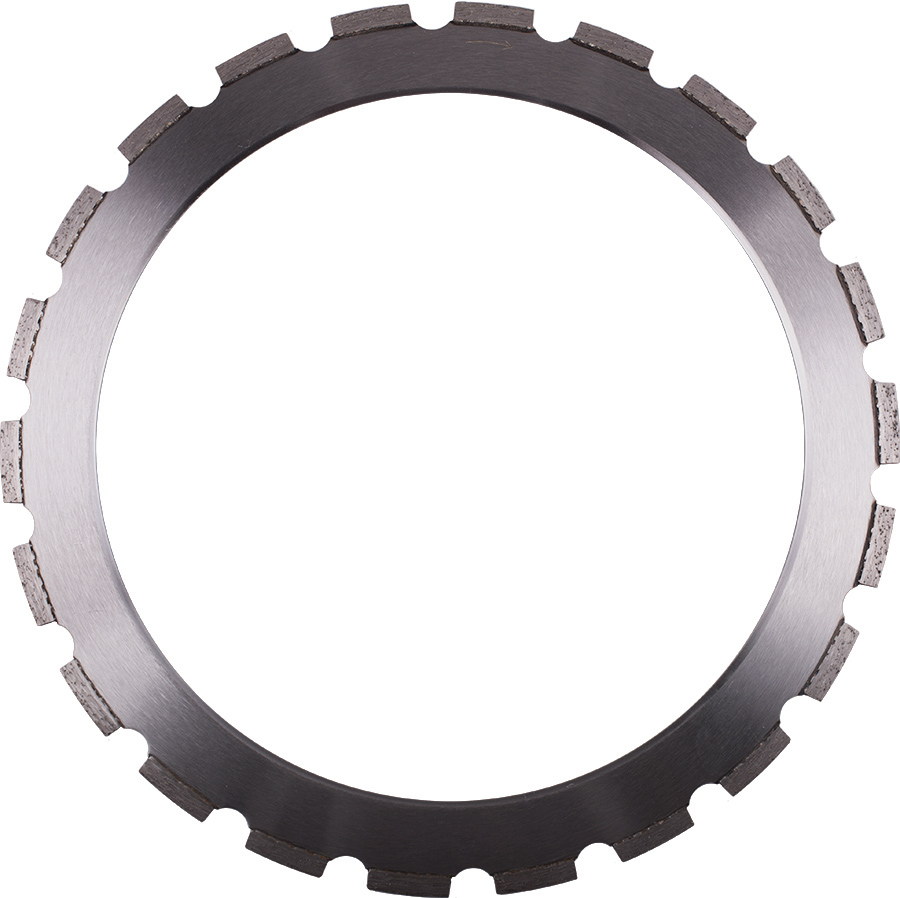

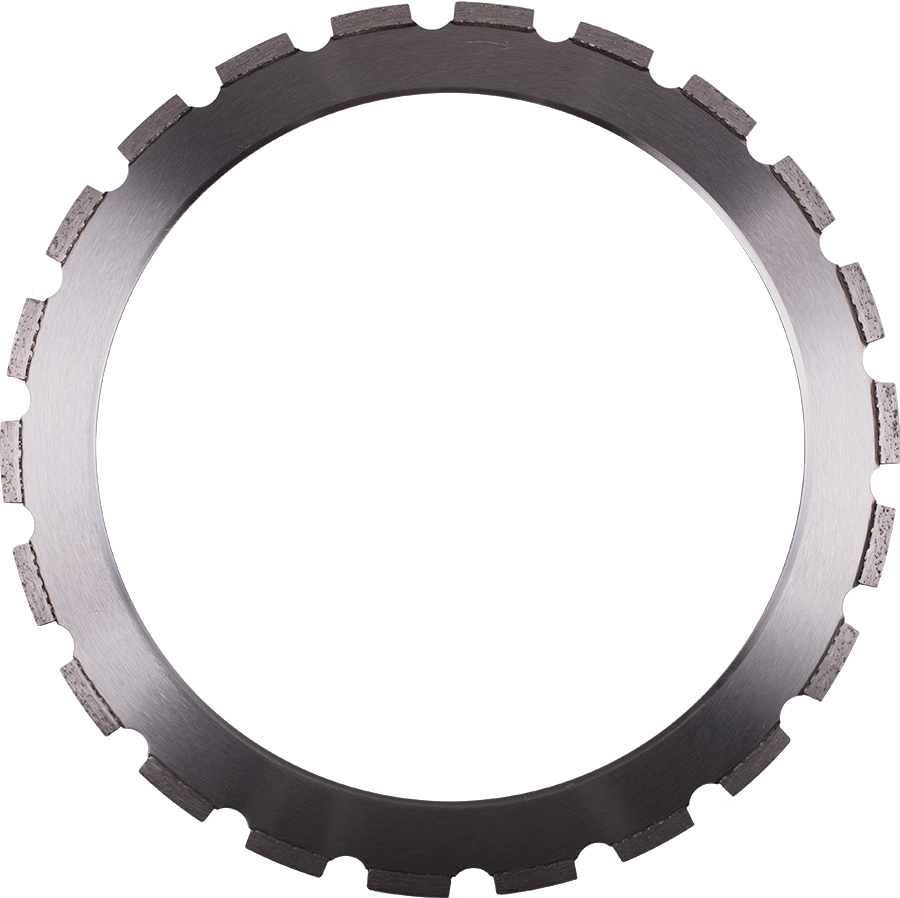

X200
X200
ring saw blade
    HEAVY DUTY GRADE
  • • 8mm (.315") segment height
  • • Offers 10" depth of cut
  • • Includes free drive wheel
  • • Available in various sizes and bonds based on application
    Application(s)
  • 1 bond - old, hard concrete
  • 2 bond - cured concrete
  • 3 bond - abrasive materials
  • Part No. / Specifications
    PART # SIZE LIST PRICE
    1416RDUX2-1 14 X .165 X Drive (1 bond)  $526.37
    1416RDUX2-2 14 X .165 X Drive (2 bond)  $526.37
    1423RDUX2-2 14 X .235  X Drive (2 bond)  $582.37
    1416RDUX2-3 14 X .165 X Drive (3 bond)  $559.02

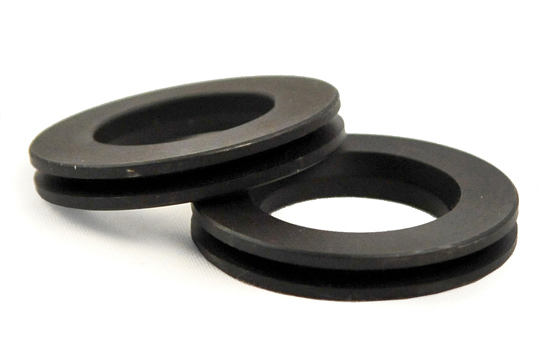

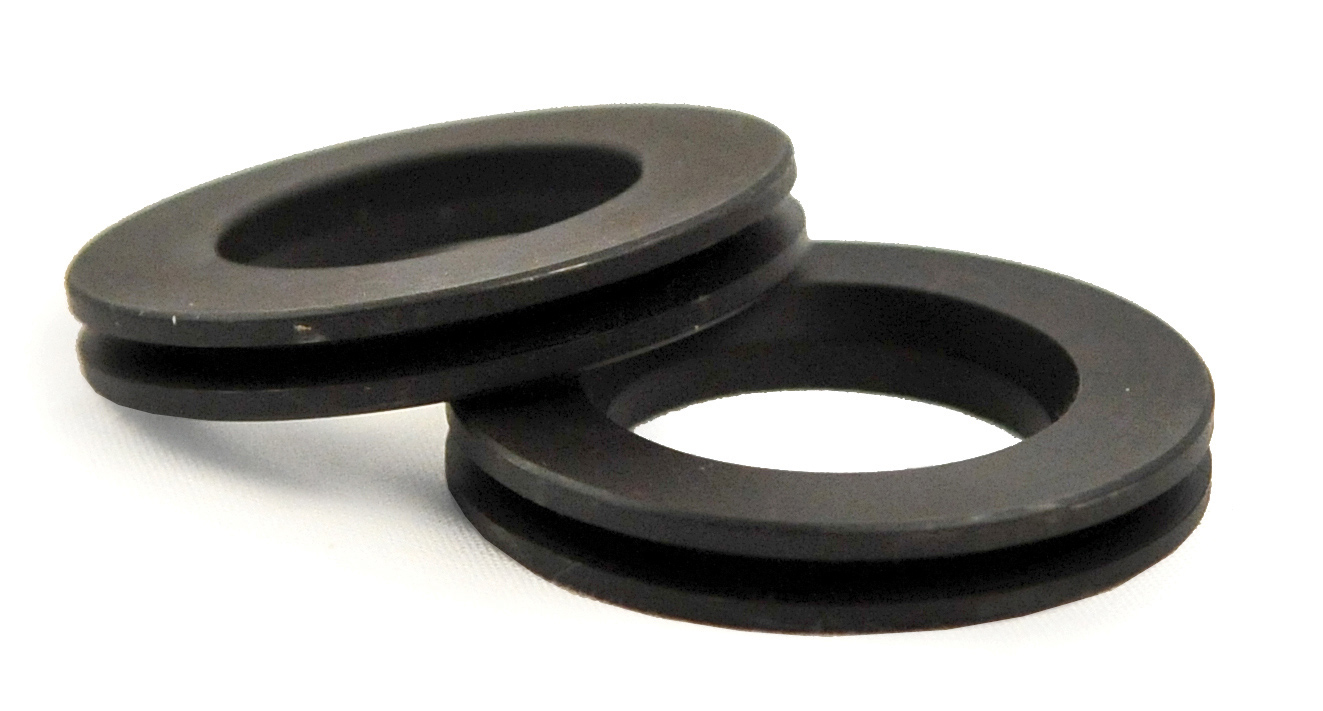

DRIVE WHEEL
DRIVE WHEEL
for ring saws
  • Free with purchase of any ring saw blade
    (also sold separately)

FIRE RESCUE

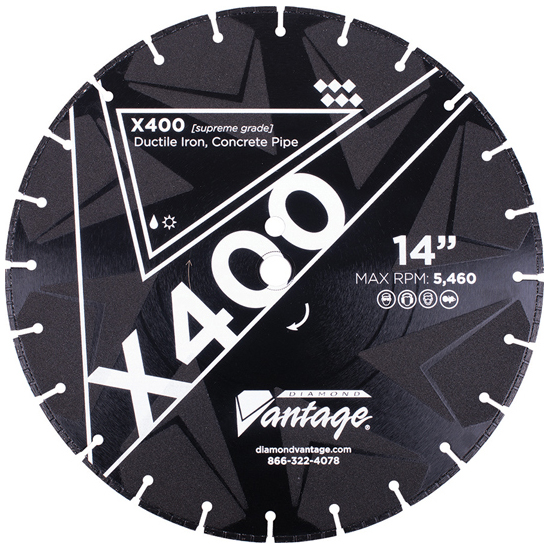

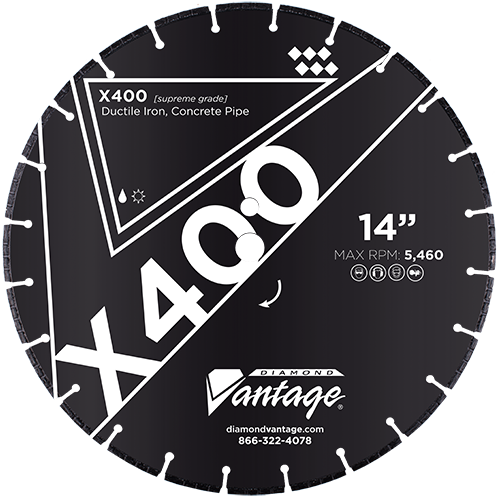

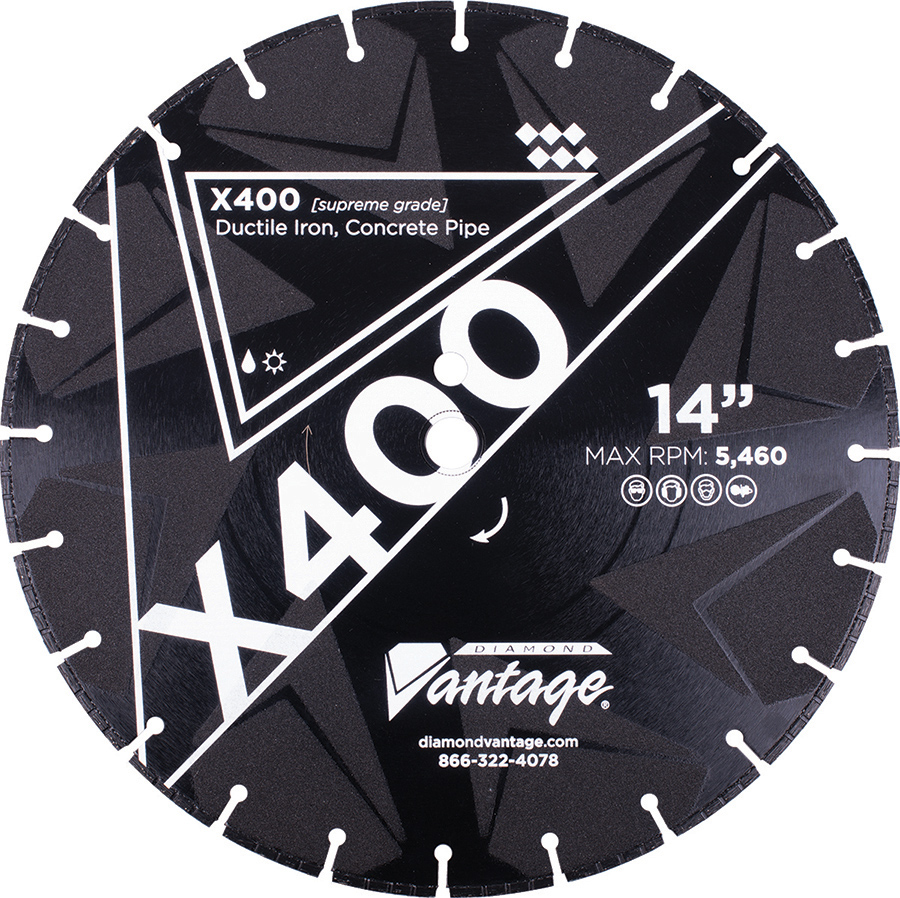

X400
X400
ductile iron
    SUPREME GRADE
  • • 4mm (.157”) segment height
  • • Turbo segment
    Application(s)
  • Ductile Iron, Concrete Water Mains
  • Part No. / Specifications
    PART # SIZE LIST PRICE
    1211BEDDIX4-4 12 X .110 X 1/20mm Ductile Iron, Supreme Grade, Seg Turbo Blade $363.37
    1212BEDDIX4-4 12 X .125 X 1/20mm Ductile Iron, Supreme Grade, Seg Turbo Blade $412.28
    1411BEDDIX4-4 14 X .110 X 1/20mm Ductile Iron, Supreme Grade, Seg Turbo Blade $422.77
    1412BEDDIX4-4 14 X .125 X 1/20mm Ductile Iron, Supreme Grade, Seg Turbo Blade $520.60
    1612BEDDIX4-4 16 X .125 X 1/20mm Ductile Iron, Supreme Grade, Seg Turbo Blade $571.87

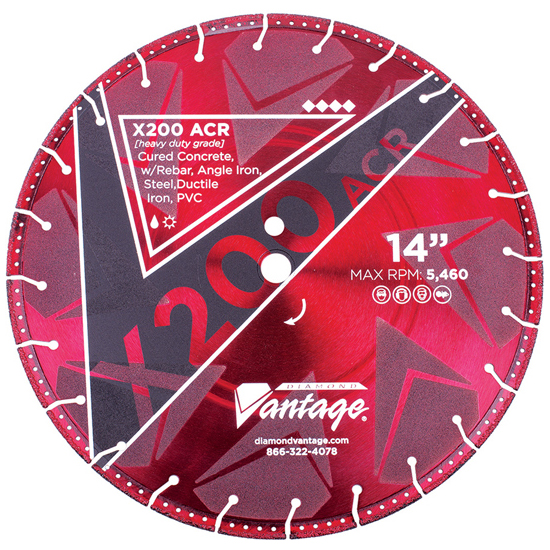

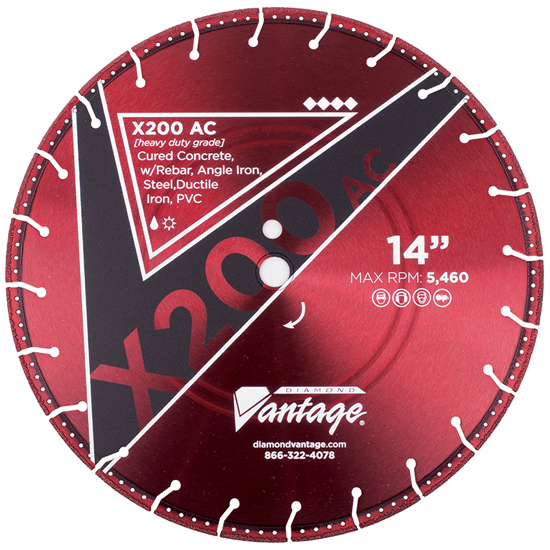

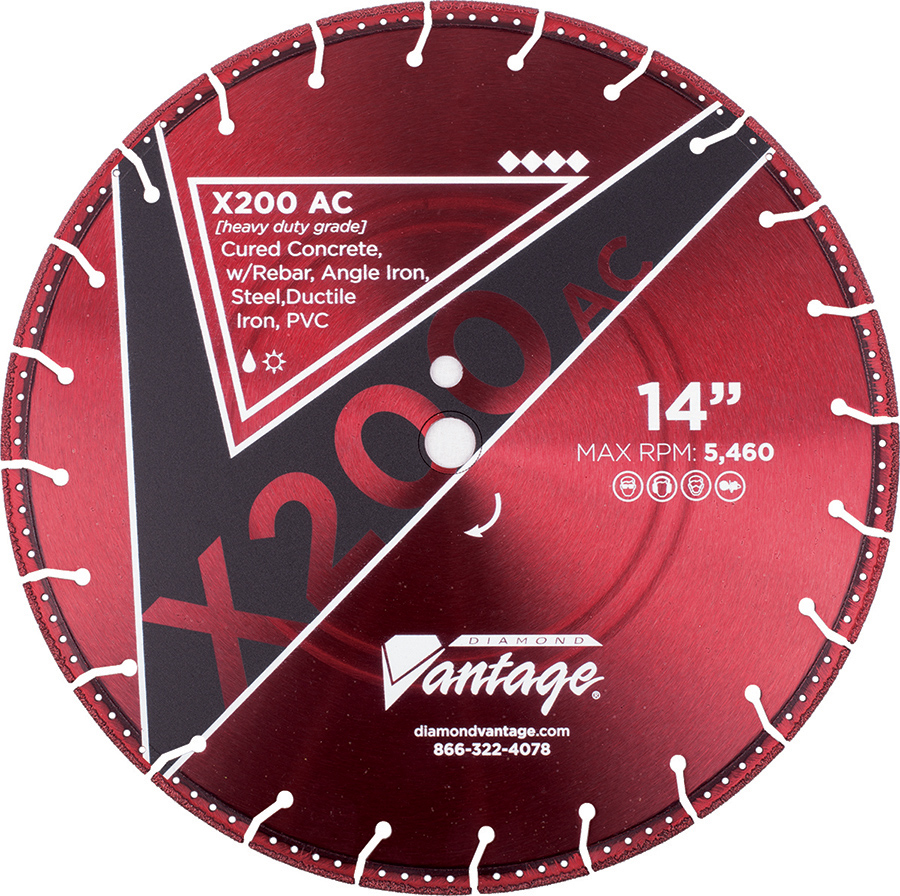

X200-AC
X200-AC
metal cutting blade
    HEAVY DUTY GRADE
  • • 5mm (.196") segment height
  • • Brazed segment, cooling hole
    Application(s)
  • PVC Pipe, Steel, Cast Iron, Ductile Iron Pipe, Reinforced Concrete
  • Part No. / Specifications
    PART # SIZE LIST PRICE
    0309TDUX2-AC2 3 X .090 X 3/8 All-Cut Blade V2 $58.88
    0411CDUX2-AC2 4 X .110 X 7/8-5/8 All-Cut Blade V2 $71.73
    4511CDUX2-AC2 4-1/2 X .110 X 7/8-5/8 All-Cut Blade V2 $76.06
    0511CDUX2-AC2 5 X .110 X 7/8-5/8 All-Cut Blade V2 $85.63
    0612UDUX2-AC2 6 X .125 X U/A All-Cut Blade V2 $117.75
    0712UDUX2-AC2 7 X .125 X U/A All-Cut Blade V2 $135.19
    0812UDUX2-AC2 8 X .125 X U/A All-Cut Blade V2 $182.01
    0912UDUX2-AC2 9 X .125 X U/A All-Cut Blade V2 $208.77
    1012UDUX2-AC2 10 X .125 X U/A All-Cut Blade V2 $246.26
    1214BDUX2-AC2 12 X .142 X 20mm All-Cut Blade V2 $316.16
    1214BEDUX2-AC2 12 X .142 X 1/20mm All-Cut Blade V2 $316.16
    1414BDUX2-AC2 14 X .142 X 20mm All-Cut Blade V2 $362.97
    1414BEDUX2-AC2 14 X .142 X 1/20mm All-Cut Blade V2 $362.97
    1614BEDUX2-AC2 16 X .145 X 1/20mm All-Cut Blade V2 $468.27
    1814EDUX2-AC2 18 X .145 X 1 All-Cut Blade V2 $702.48
    2015EDUX2-AC2 20 X .155 X 1 All-Cut Blade V2 $834.93
*While the blade can be used to occasionally cut steel, it was not designed for heavy steel cutting applications. For demanding metal-working applications, please refer to DiamondX® products. While adaptors permit any blade to be used on various manufacturers' saws, certain manufactures recommend against using particular type of blades on their machines. As such, customers are requested to check suitability of all blades before purchase and use on any given saw and/or machinery. Before purchasing any product all users should refer to their power saw's operator's manual to ascertain the suitability of the product for their particular power saw.

*CERTAIN MANUFACTURERS OF POWERED SAWS, INCLUDING STIHL® AND HUSQVARNA®, PROHIBIT USE OF ABRASION SIDE COATED BLADES ON THEIR SAWS. STIHL® is a trademark of Andreas Stihl AG & Co. HUSQVARNA® is a trademark of Husqvarna AB.
