PORCELAIN blade

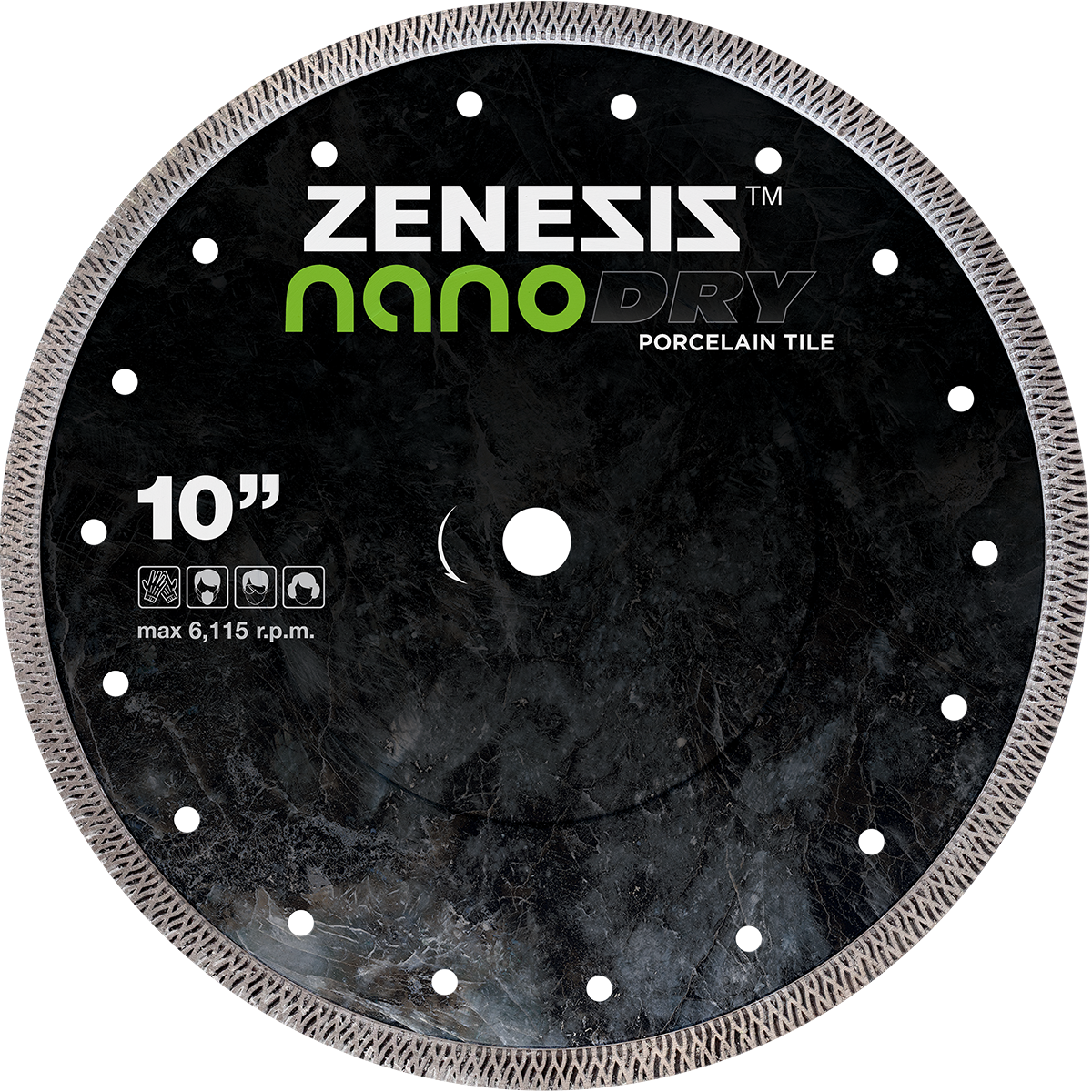

Nano Dry 10in

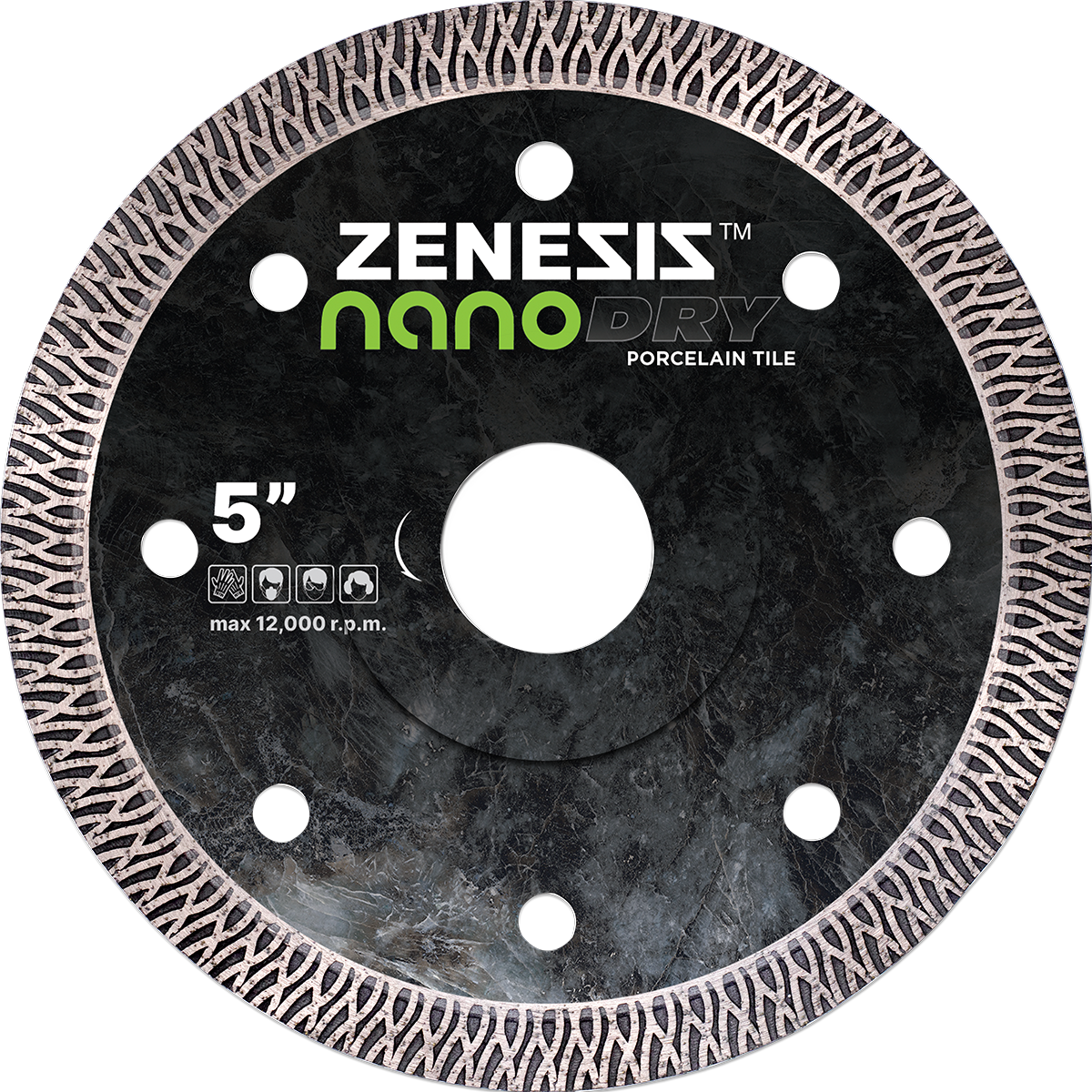

Nano Dry 10in Nano Dry 5in

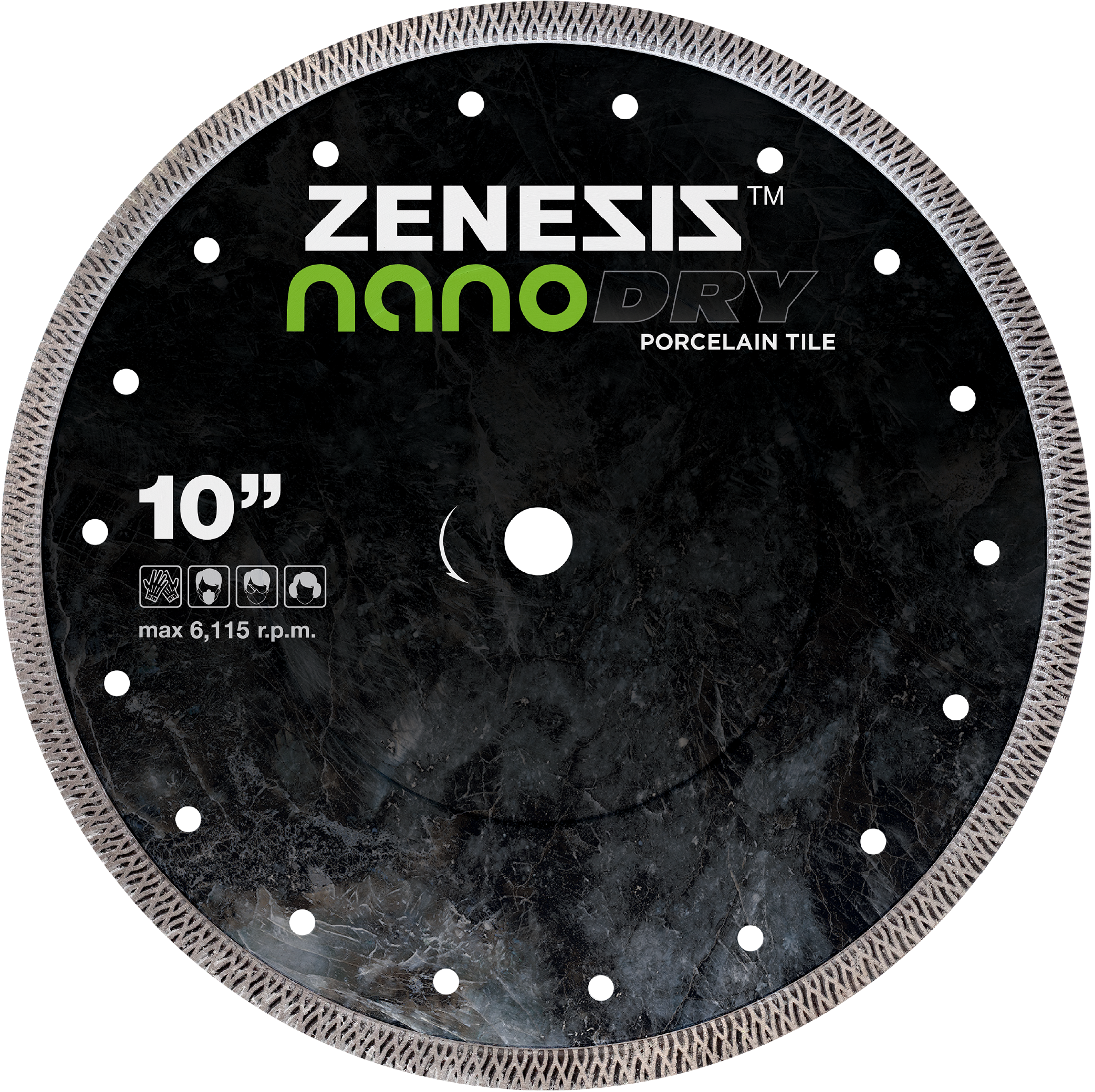

ZENESIS™ NANO
dry porcelain tile blade
    ZENESIS™ GRADE
  • Our new ZENESIS™ Nano Dry Porcelain Blade was 40% faster than the leading competitor with significantly cleaner cuts*. When other tile blades stop cutting and glaze over this blade keeps cutting effortlessly from start to finish. (*based on internal testing)
  • Our team of engineers was tasked to create a fast and clean cutting blade to cover the entire spectrum of porcelain tiles
  • • Mesh-style turbo rim blades are quickly becoming the most popular blade in the stone and tile industry
  • • 10mm(.394”) segment height
  • • Ultra Thin Mesh rim
  • • Do not use for radius cutting
    Application(s)
  • Porcelain Tile, Ceramic Tile, Porcelain Pavers
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .050 x ⅞-⅝, Hub 0405C4PDX4Z call for pricing
    4.5 x .050 x ⅞-⅝, Hub 4505C4PDX4Z call for pricing
    5 x .050 x ⅞-⅝, Hub 0505C4PDX4Z call for pricing
    6 x .063 x ⅞-⅝, Hub 0606C4PDX4Z call for pricing
    7 x .063 x U/A-⅞-⅝, Hub 0706U4PDX4Z call for pricing
    10 x .063 x ⅝, Hub 1006A4PDX4Z call for pricing
    14 x .110 x 1, No Hub 1411E4PDX4Z call for pricing

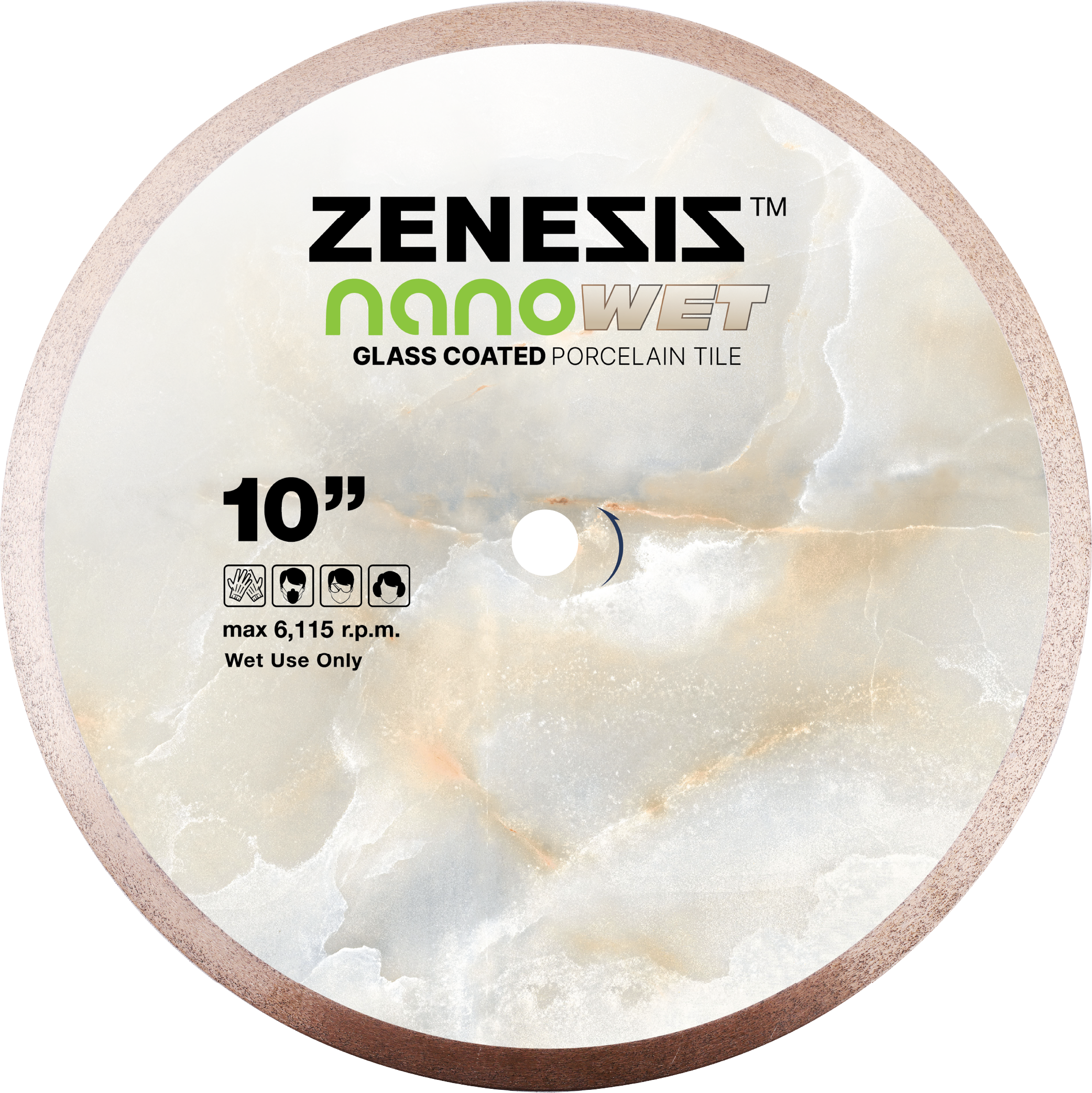

ZENESIS™ NANO WET
ZENESIS™ NANO
glass coated porcelain tile blade
    ZENESIS™ GRADE
  • The ZENESIS™ Nano is the first hybrid tile blade designed to cut chip-free on next-generation coated porcelains. A high concentration of the highest quality diamonds combined with our special metal bond matrix gives the speed of a high-quality porcelain blade and the finish of a premium glass blade. We have also added extra reinforcement to the core to keep the blade running true and straight when cutting large format tiles.
  • • 10mm(.394”) segment height
    Application(s)
  • Glass Coated Porcelain, Porcelain Tile, Porcelain Pavers
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    7 x .060 x 5/8 S-0706AWNZ call for pricing
    10 x .060 x 5/8 S-1006AWNZ call for pricing
ZENESIS
ZENESIS™ Continuous
hard material tile blade
    ZENESIS™ GRADE
  • Unique slot and rim design give the ZENESIS™ Continuous Rim Blade unparalleled cutting precision and performance, all without breaking a sweat. And since the blade incorporates ZENESIS™ pattern technology, fabricators can count on exceptionally smooth, chip-free cutting of porcelain tile, granite and other hard materials.
  • • 4”-6”: 6.5mm (.255”) segment height
  • • 7”-14”: 10mm (.394”) segment height
  • • Use 4”, 4.5”, 5” and 6” wet and dry, All other sizes must be used wet
  • • Do not use for radius cutting
    Application(s)
  • Pool Tile, Large Format Porcelain, Porcelain Pavers, Stone
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    (Dry) 4 x .060 x 7/8-5/8 + 20mm S-0406CTZ call for pricing
    (Dry) 4 1/2 x .060 x 7/8-5/8 + 20mm S-4506CTZ call for pricing
    (Dry) 5 x .060 x 7/8-5/8 + 20mm S-0506CTZ call for pricing
    (Dry) 6 x .060 x 7/8-5/8 + 20mm S-0606CTZ call for pricing
    7 x .060 x U/A S-0706UTZ call for pricing
    8 x .060 x 1-5/8 S-0806ETZ call for pricing
    8 x .060 x U/A S-0806UTZ call for pricing
    10 x .080 x 1-5/8 S-1008ETZ call for pricing
    12 x .080 x 1-5/8 S-1208ETZ call for pricing
    12 x .080 x 50/60mm S-1208TTZ call for pricing
    14 x .080 x 1-5/8 S-1408ETZ call for pricing
    14 x .080 x 50/60mm S-1408TTZ call for pricing
ZENESIS™ PORCELAIN
ZENESIS™ PORCELAIN
porcelain tile blade
    ZENESIS™ GRADE
  • ZENESIS™ PORCELAIN Tile Blade is designed for professionals looking for fast, smooth and chip free cuts on ceramic and all types of porcelain, including large porcelain sheets and porcelain pavers. The continuous rim minimizes chipping and reduces the risk of blade flexing and segment loss.
  • • 10mm(.394”) segment height for long life
  • • Do not use for radius cutting.
    Application(s)
  • Porcelain Tile, Porcelain Pavers
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 7/8-5/8 + 20mm S-0406CWPZ call for pricing
    4. x .060 x 7/8-5/8 + 20mm S-4506CWPZ call for pricing
    7 x .060 x 5/8 S-0706AWPZ call for pricing
    10 x .060 x 5/8 S-1006AWPZ call for pricing

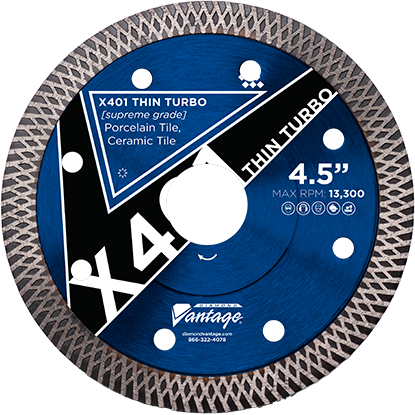

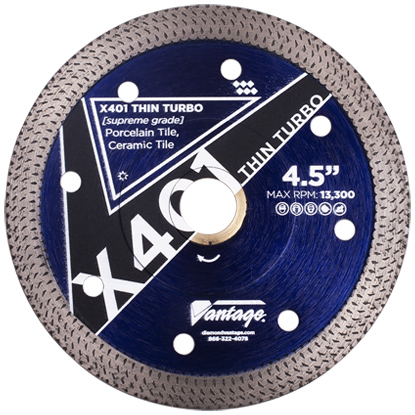

X401 THIN TURBO
X401 THIN TURBO
porcelain dry tile blade
    SUPREME GRADE
  • • 10mm (.394") continuous rim height
  • • This blade is the go-to for just about everything. Cuts the hardest tiles and stone. Our testing on 3/4" porcelain pavers proved this blade to be the best against all our competitors' porcelain blades. The clean cuts from the unique thin turbo rim design will surprise you.
  • • Do not use for radius cutting
    Application(s)
  • Porcelain Tile, Ceramic Tile, Porcelain Pavers
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .050 x 7/8-5/8 0406C4PDX4 $67.29
    4.5 x .050 x 7/8-5/8 4506C4PDX4 $81.96
    5 x .050 x 7/8-5/8 0506C4PDX4 $88.78
    6 x .050 x 7/8-5/8 0606C4PDX4 $103.99
    7 X .079 x 7/8-5/8 0706U4PDX4 $155.99
    10 X .079 x 7/8-5/8 1006A4PDX4 $244.69
    12 X .087 X 1 1209E4PDX4 $330.33
    14 X .087 X 1 1411E4PDX4 $367.02
X400

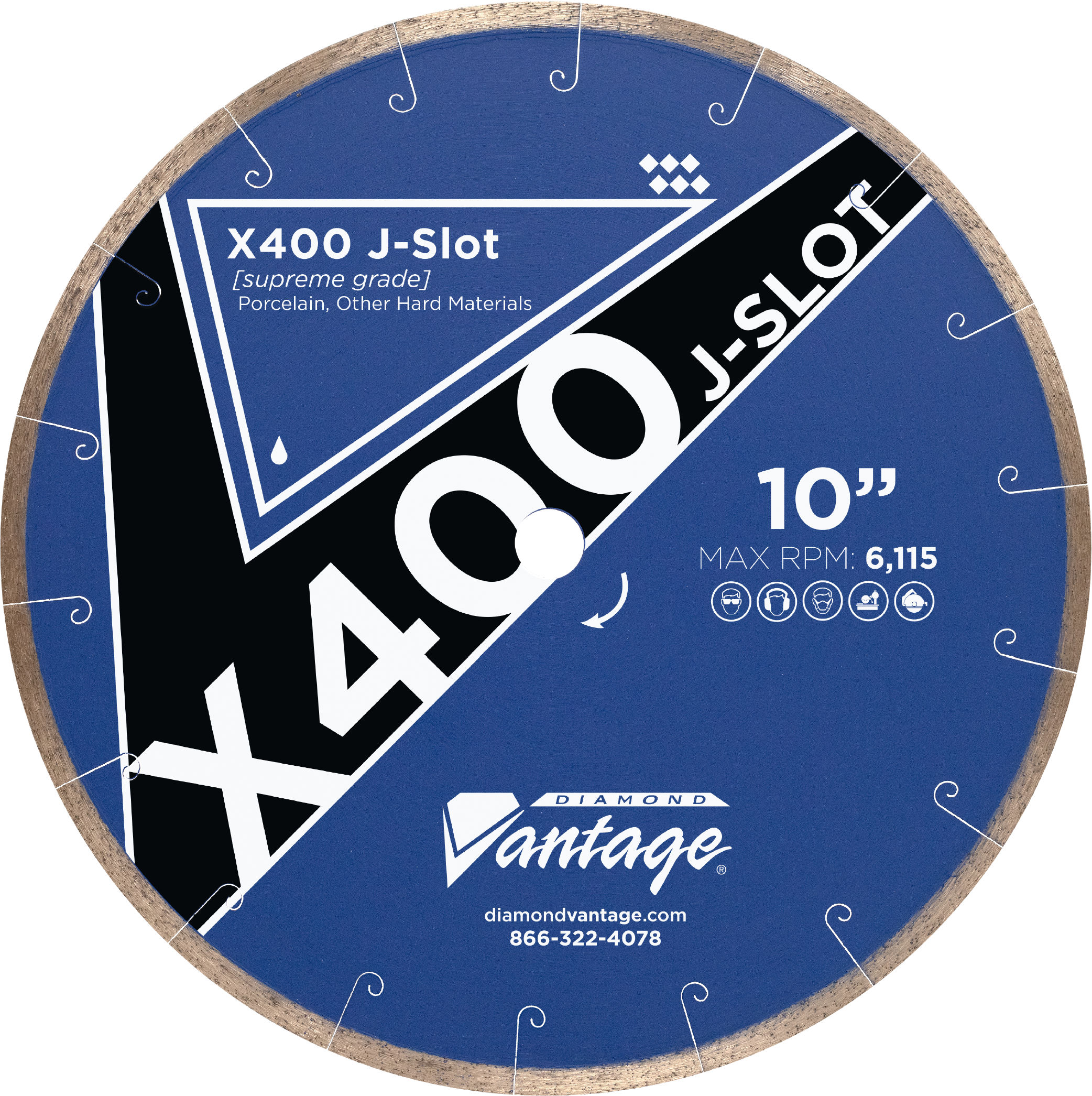

X400 J-SLOT
porcelain tile blade
    SUPREME GRADE
  • • 6.5mm (.256”) segment height
  • • Do not use for radius cutting
    Application(s)
  • Porcelain Tile, Ceramic Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4.5 x .050 x ⅞-⅝ 4505CPWX4J $57.05
    5 x .050 x ⅞-⅝ 0505CPWX4J $69.00
    6 x .050 x ⅞-⅝ 0605CPWX4J $78.03
    7 x .050 x ⅝ 0705APWX4J $92.71
    10 x .050 x ⅝ 1005APWX4J $133.88
    12 x .080 x 1 1208EPWX4J $280.63
    14 x .080 x 1 1408EPWX4J $294.66

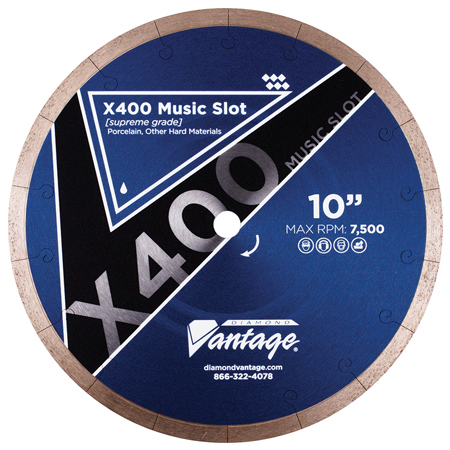

X400 MUSIC SLOT
X400 MUSIC SLOT
porcelain tile blade
    SUPREME GRADE
  • • 10mm (.394") continuous rim height, incredible long life for the hardest porcelain.
  • • Do not use for radius cutting
    Application(s)
  • Pool Tile, Large Format Porcelain, Porcelain Pavers, Granite
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406APWX4 $66.85
    7 x .060 x 5/8 0706APWX4 $105.95
    8 x .060 x 5/8 0806APWX4 $128.00
    10 x .060 x 5/8 1006APWX4 $150.28
    12 x .080 x 50/60mm 1208LPWX4 $279.58
    14 x .080 x 50/60mm 1408LPWX4 $297.02

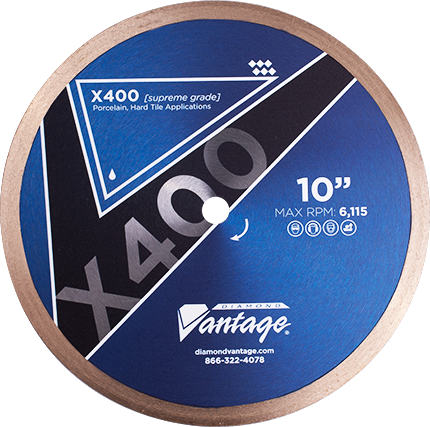

X400
X400
porcelain tile blade
    SUPREME GRADE
  • • 10mm (.394”) continuous rim height, incredible long life for the hardest porcelain.
  • • Do not use for radius cutting
    Application(s)
  • Pool Tile, Large Format Porcelain, Porcelain Pavers, Granite
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x ⅝ 0406APWX4-NMS $68.85
    4½ x .060 x ⅝ 4506APWX4-NMS $73.65
    5 x .060 x ⅝ 0506APWX4-NMS $77.95
    7 x .060 x ⅝ 0706APWX4-NMS $105.95
    8 x .060 x ⅝ 0806APWX4-NMS $128.00
    10 x .060 x ⅝ 1006APWX4-NMS $150.28
    12 x .080 x 50/60mm 1208LPWX4-NMS $279.58
    14 x .080 x 50/60mm 1408LPWX4-NMS $297.02

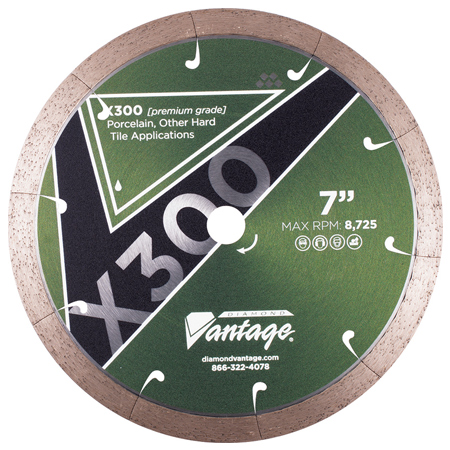

X300
X300
porcelain tile blade
    PREMUIM GRADE
  • • 10mm (.394") continuous rim height
  • • E Slot
  • • Designed for the harder and thicker porcelains now on the market.
  • • Do not use for radius cutting
    Application(s)
  • Porcelain Tile, Ceramic Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406APWX3 $65.17
    6 x .060 x 5/8 0606APWX3 $93.23
    7 x .060 x 5/8 0706APWX3 $101.37
    8 x .060 x 5/8 0806APWX3 $115.27
    8 x .080 x 5/8 0808APWX3 $146.74
    9 x .060 x 5/8 0906APWX3 $137.42
    10 x .060 x 5/8 1006APWX3 $143.20
    10 x .080 x 5/8 1008APWX3 $191.06
    10 x .080 x 7/8-5/8 1008CPWX3 $191.06
    12 x .080 x 1 1208EPWX3 $269.09
    14 x .080 x 1 1408EPWX3 $269.09

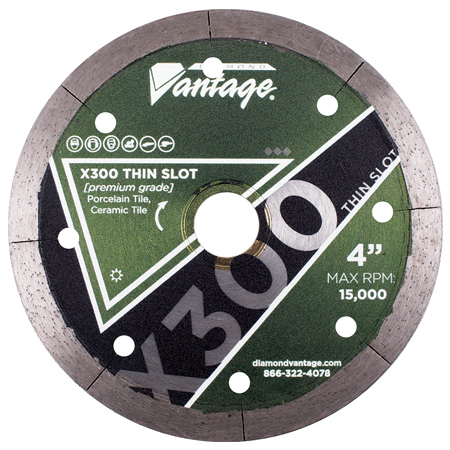

X300 THIN T-SLOT
X300 THIN T-SLOT
porcelain dry tile blade
    PREMUIM GRADE
  • • 7.5mm (.295") continuous rim height
  • • Great for chip free cuts on all tiles and natural stone.
  • • Designed for small hand held machines to run dry at high RPMs.
  • • Large circular laser cut outs help to keep blade from overheating.
  • • Do not use for radius cutting
    Application(s)
  • All Types of Tile, All Types of Natural Stone
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406APDX3 $55.60
    4 1/2 x .060 x 5/8 4506APDX3 $59.14
    5 x .060 x 5/8 0506APDX3 $65.44
    6 x .060 x 5/8 0606APDX3 $72.91

GLASS Blade

ZENESIS GLASS
ZENESIS™ GLASS
hard materials
    ZENESIS™ GRADE
  • The new ZENESIS™ Glass Tile Blade provides chip-free performance significantly beyond anything currently available on the market. Independent testing has shown this blade to provide superior performance on all types and thicknesses of glass
  • • 7.5mm (.295”) segment height
  • • Do not use for radius cutting.
    Application(s)
  • Glass Tile, Glass Block, Soft Brittle Marble
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 7/8-20mm-5/8 S-0406CWGZ call for pricing
    4. x .060 x 7/8-20mm-5/8 S-4506CWGZ call for pricing
    7 x .060 x 5/8 S-0706AWGZ call for pricing
    10 x .060 x 5/8 S-1006AWGZ call for pricing

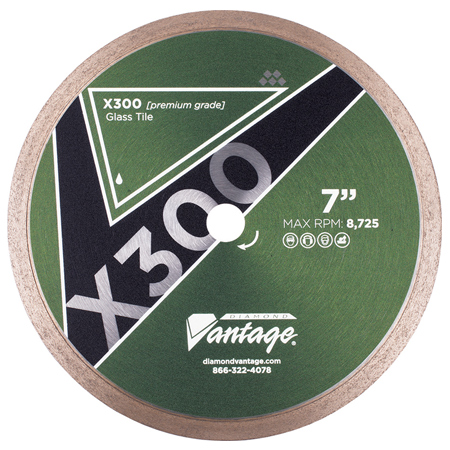

X300
X300
glass wet tile blade
    PREMUIM GRADE
  • • 7.5mm (.295”) continuous rim height
  • • High concentration of fine, top quality diamonds give the smoothest cut of any blade we offer
  • • Badly chipped glass tiles are never acceptable, the solution is here
  • • Do not use for radius cutting
    Application(s)
  • Glass Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0405AGWX3 $99.01
    5 x .060 x 5/8 0505AGWX3 $128.12
    5 x .060 x 7/8-5/8 0505CGWX3 $128.12
    7 x .060 x 5/8 0705AGWX3 $163.00
    8 x .060 x 5/8 0805AGWX3 $173.49
    10 x .060 x 5/8 1005AGWX3 $216.64
    12 x .080 x 1 1208EGWX3 $366.91
    14 x .080 x 1 1408EGWX3 $508.93

CERAMIC Blade

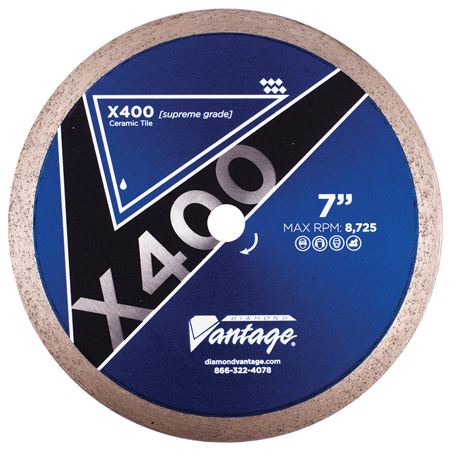

X400
X400
ceramic
    SUPREME GRADE
  • • 10mm (.394") continuous rim height, for unbelievable long life.
  • • Premium grade diamonds and technology make this the best ceramic blade on the market
  • • Do not use for radius cutting
    Application(s)
  • Porcelain Tile, Ceramic Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406ATWX4 $51.27
    4 x .060 x 7/8-5/8 0406CTWX4 $51.27
    4 1/2 x .060 x 5/8 4506ATWX4 $69.90
    4 1/2 x .060 x 7/8-5/8 4506CTWX4 $69.90
    5 x .060 x 7/8-5/8 0506CTWX4 $72.19
    6 x .060 x 5/8 0606ATWX4 $74.48
    6 x .060 x 7/8-5/8 0606CTWX4 $74.48
    7 x .060 x 5/8 0706ATWX4 $82.74
    7 x .060 x DM-5/8 0706DTWX4 $82.74
    8 x .060 x 5/8 0806ATWX4 $89.69
    8 x .060 x DM-5/8 0806DTWX4 $89.69
    10 x .060 x 5/8 1006ATWX4 $116.44
    10 x .060 x 1 1006ETWX4 $116.44
    12 x .080 x 1 1208ETWX4 $201.55
    14 x .080 x 1 1408ETWX4 $227.13

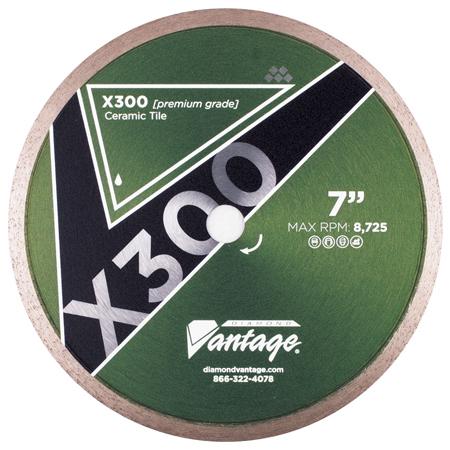

X300
X300
ceramic
    PREMUIM GRADE
  • • Not for extremely hard tile applications
  • • 7.5mm (.295") continuous rim height
  • • Designed for the professional tile setter
  • • Super clean chip free cuts on ceramic tile, Saltillo tile and natural stone
  • • Do not use for radius cutting
    Application(s)
  • Ceramic Tile, Saltillo Tile, Natural Stone Tiles
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406ATWX3 $44.32
    4 x .060 x 7/8-5/8 0406CTWX3 $44.32
    4 1/2 x .060 x 5/8 4506ATWX3 $48.91
    5 x .060 x 7/8-5/8 0506CTWX3 $55.93
    6 x .060 x 5/8 0606ATWX3 $62.94
    6 x .060 x 7/8-5/8 0606CTWX3 $62.94
    7 x .060 x 5/8 0706ATWX3 $67.54
    7 x .060 x 7/8-5/8 0706CTWX3 $67.54
    8 x .060 x 5/8 0806ATWX3 $74.48
    8 x .060 x 7/8-5/8 0806CTWX3 $74.48
    10 x .060 x 5/8 1006ATWX3 $101.37
    10 x .060 x 7/8-5/8 1006CTWX3 $101.37
    10 x .060 x 1 1006ETWX3 $101.37
    12 x .080 x 1 1208ETWX3 $185.17
    14 x .080 x 1 1408ETWX3 $211.91

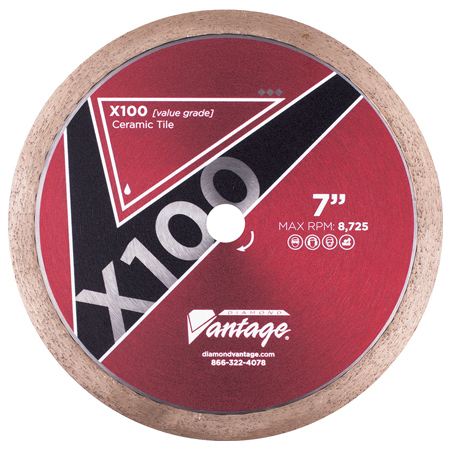

X100
X100
ceramic
    VALUE GRADE
  • • 10mm (.394") continuous rim height, for longer life
  • • Clean, chip free cuts on natural stone
  • • Great value and performance
  • • Not for extremely hard tile applications
  • • Do not use for radius cutting
    Application(s)
  • Ceramic Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406ATWX1 $34.88
    4 x .060 x 7/8-5/8 0406CTWX1 $34.88
    4 1/2 x .060 x 5/8 4506ATWX1 $41.96
    4 1/2 x .060 x 7/8-5/8 4506CTWX1 $41.96
    5 x .060 x 5/8 0506ATWX1 $48.91
    5 x .060 x 7/8-5/8 0506CTWX1 $48.91
    6 x .060 x 5/8 0606ATWX1 $58.22
    6 x .060 x 7/8-5/8 0606CTWX1 $58.22
    7 x .060 x 5/8 0706ATWX1 $63.99
    7 x .060 x 7/8-5/8 0706CTWX1 $63.99
    8 x .060 x 5/8 0806ATWX1 $66.36
    10 x .060 x 5/8 1006ATWX1 $92.06
    10 x .060 x 7/8-5/8 1006CTWX1 $92.06
    12 x .080 x 1 1208ETWX1 $160.77
    14 x .080 x 1 1408ETWX1 $180.57

GENERAL PURPOSE (DRY)

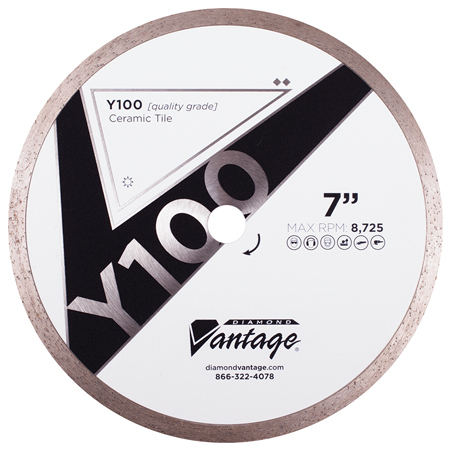

Y100
Y100
general purpose (dry)
    QUALITY GRADE
  • • 7mm (.284" ) continuous rim height
  • • 2x times taller rim than most dry tile blades
  • • Good for a variety of materials like ceramic tile, Saltillo tile and Cantera stone.
  • • Do not use for radius cutting
    Application(s)
  • Ceramic Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .080 x 7/8-5/8 0406CTDY2 $17.17
    4 1/2 x .080 x 7/8-5/8 4506CTDY2 $18.09
    7 x .090 x 5/8 0706ATDY2 $36.72
    10 x .090 x 5/8 1006ATDY2 $59.14

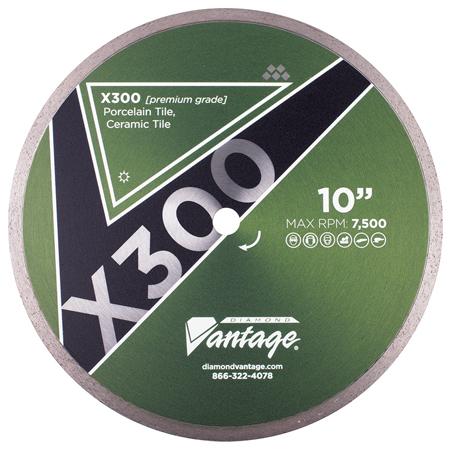

X300
X300
general purpose (dry)
    PREMUIM GRADE
  • • 7.5mm (.284") continuous rim height
  • • This professional grade continuous rim blade uses the most current technology to be able to cut the hardest materials chip free without water.
  • • Available in sizes 4" to 14".
  • • Do not use for radius cutting
    Application(s)
  • Porcelain Tile, Ceramic Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    4 x .060 x 5/8 0406ATDX3 $57.33
    4 x .060 x 7/8-5/8 0406CTDX3 $57.33
    4 1/2 x .060 x 5/8 4506ATDX3 $60.59
    4 1/2 x .060 x 7/8-5/8 4506CTDX3 $67.54
    5 x .060 x 7/8-5/8 0506CTDX3 $74.10
    6 x .060 x 5/8 0606ATDX3 $83.80
    7 x .060 x 7/8-5/8 0706CTDX3 $102.68
    7 x .060 x DM-5/8 0706DTDX3 $102.68
    8 x .060 x 5/8 0806ATDX3 $103.60
    8 x .060 x DM-5/8 0806DTDX3 $103.60
    10 x .060 x 5/8 1006ATDX3 $132.84
    10 x .060 x 7/8-5/8 1006CTDX3 $132.84
    12 x .080 x 1 1208ETDX3 $234.08
    14 x .080 x 1 1408ETDX3 $267.91

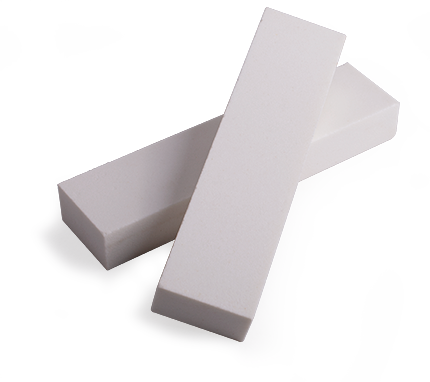

Dressing Stones

DRESSING STONES
Dressing Stones
  • • Keep your tile and stone blades at their premium performance level with abrasive dressing stones from Diamond Vantage®.
  • • Today’s natural and man-made materials can quickly glaze even the best diamond blade.
  • • If you wait for a blade to become dull, it can cause serious damage to your material and even damage the blade.
  • • Coarse sharp abrasives in the dressing stone quickly expose new diamonds to keep your cuts clean and eliminate blow out at the beginning or end of a cut.
  • • For those materials that are hard, dense, and difficult to cut, we recommend dressing the blade frequently.

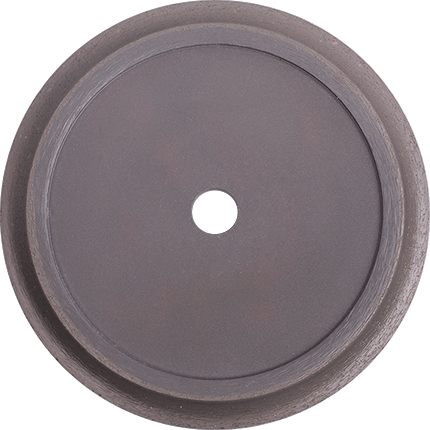

Profile Wheel

PROFILE WHEEL
Profile Wheel
general purpose (wet)
    PREMUIM GRADE
  • The best and fastest way to bevel or bullnose tile is with our 6” and 8” tile saw wheels. This is a professional grade, production tool that can shape marble, ceramic, granite and even the hardest porcelain tiles. Not to be confused with other brands that use electroplated or brazed diamonds, our blades have a metal bond with multiple layers of diamond to outlast all others.
    • Part No. / Specifications
      SIZE PART # LIST PRICE
      S-0637AWPC-B 6” x .375” x ⅝ Demi Bullnose, Shape B $547.46
      S-0650AWPC-B 6” x .500” x ⅝ Demi Bullnose, Shape B $611.69
      S-0837AWPC-B 8” x .375” x ⅝ Demi Bullnose, Shape B $761.57
      S-0850AWPC-B 8” x .500” x ⅝ Demi Bullnose, Shape B $813.56
      S-0637AWPC-E 6” x .375” x ⅝ Bevel, Shape E $714.81
      S-0650AWPC-E 6” x .500” x ⅝ Bevel, Shape E $773.80
      S-0650AWPC-F 6” x .500” x ⅝ Ogee, Shape F $1049.07

CORE BITS

CORE BITS

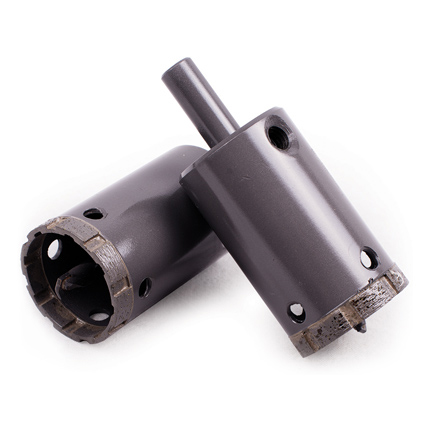

CORE BITS - 43mm
general purpose core bit
    PREMUIM GRADE
  • • 5.5mm (.216”) segment height, will yield maximum number of holes
  • • Sizes over 1” equipped with pilot drill
  • • These premium grade core bits have a male stem to run on any hand drill
  • • The turbo rim is designed for fast, clean drilling
  • • 43mm drilling depth
    Application(s)
  • Porcelain Tile, Ceramic Tile, Granite, Marble
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    ST-00508SDTRCB 1/2 X .080 X 10mm $112.20
    ST-00608SDTRCB 5/8 X .080 X 10mm $116.73
    ST-00708SDTRCB 3/4 X .080 X 10mm $116.73
    ST-00808SDTRCB 7/8 X .080 X 10mm $117.84
    ST-01008SDTRCB 1 X .080 X 10mm $117.84
    ST-01108SDTRCB 1-1/8 X .080 X 10mm $122.37
    ST-01208SDTRCB 1-1/4 X .080 X 10mm $122.37
    ST-01308SDTRCB 1-3/8 X .080 X 10mm $122.37
    ST-01508SDTRCB 1-1/2 X .080 X 10mm $136.95
    ST-01608SDTRCB 1-5/8 X .080 X 10mm $141.48
    ST-01708SDTRCB 1-3/4 X .080 X 10mm $154.97
    ST-01808SDTRCB 1 7/8 X .080 X 10mm $154.97
    ST-02008SDTRCB 2 X .080 X 10mm $154.97
CORE BITS

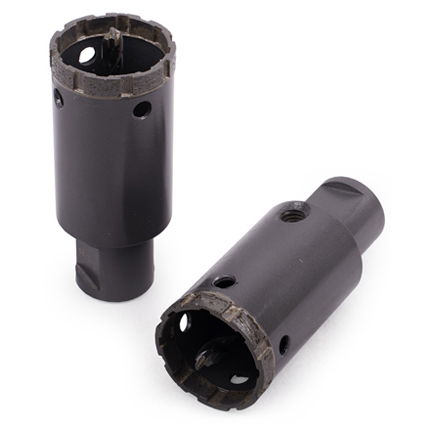

CORE BITS - 35mm
general purpose core bit
    PREMUIM GRADE
  • • 5.5mm (.216") segment height
  • • Sizes over 1" equipped with pilot drill
  • • Same great quality as our turbo tile bits. Designed to run on any grinder or polisher with ⅝-11 male thread
  • • Approximate 35mm drilling depth
    Application(s)
  • Porcelain Tile, Ceramic Tile, Granite, Marble
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    ST-01008HDTRCB 1 X .080 X 5/8-11 $121.28
    ST-01108HDTRCB 1-1/8 X .080 X 5/8-11 $122.37
    ST-01208HDTRCB 1-1/4 X .080 X 5/8-11 $126.78
    ST-01308HDTRCB 1-3/8 X .080 X 5/8-11 $126.78
    ST-01508HDTRCB 1-1/2 X .080 X 5/8-11 $140.25
    ST-01708HDTRCB 1-3/4 X .080 X 5/8-11 $159.36
    ST-02008HDTRCB 2 X .080 X 5/8-11 $159.36

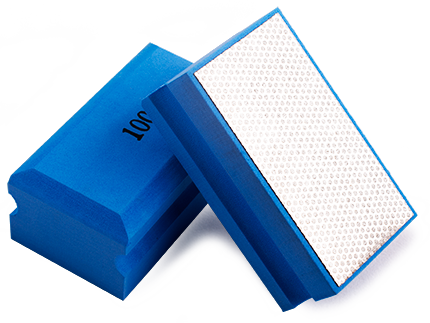

Diamond Hand Pads

Diamond Hand Pads
Diamond Hand Pads
stone
  • • Our hand polishing pads have so many uses it is almost limitless. Originally designed for doing repairs on stone without power tools.
  • • We have also found them to be great for taking off sharp edges on porcelain tile,removing calcium from swimming pool tiles and prepping concrete overlays.
  • • Available individually or in sets from 50-3000 grit.
    Application(s)
  • Repairing Natural and Engineered Stone, Edge Polishing Ceramic and Porcelain Tile
  • Part No. / Specifications
    SIZE PART # LIST PRICE
    S-HPEL-50 Electroplated #50 $88.70
    S-HPEL-100 Electroplated #100 $88.70
    S-HPEL-200 Electroplated #200 $88.70
    S-HPEL-400 Electroplated #400 $88.70
    S-HPRE-800 Resin #800 $88.70
    S-HPRE-1500 Resin #1500 $88.70
    S-HPRE-3000 Resin #3000 $88.70
